Turn Signal (Combination) Switch

REMOVAL & INSTALLATION

1. Disconnect the negative (-) battery cable.
2. Perform the Steering Wheel Removal procedure.
3. Separate the steering column wiring connectors which are located underneath the instrument panel.
4. Remove the turn signal (combination) switch securing screws and unscrew the hazard warning switch knob.
5. Remove the contact plate, cancelling cam, and switch assembly from the steering column housing.

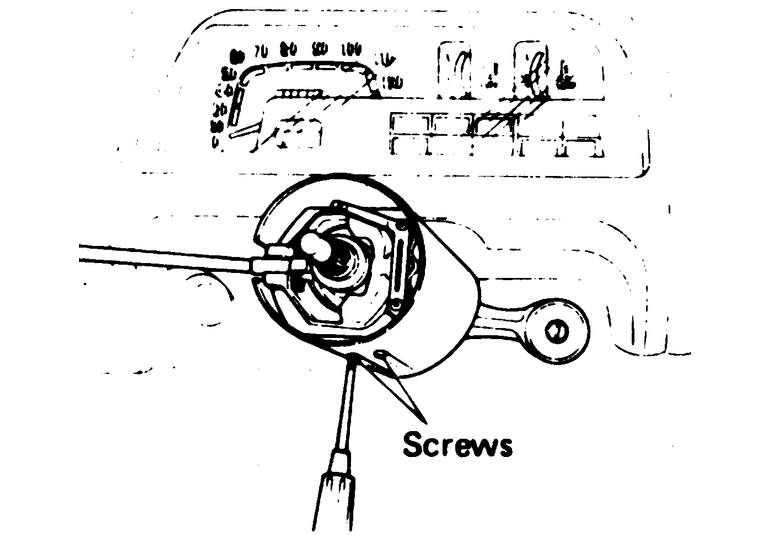

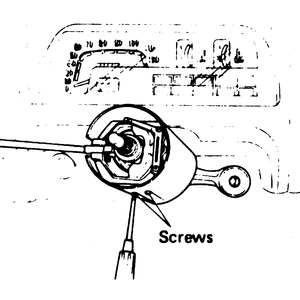

   Fig. 1: Remove the turn signal (combination) switch securing screws and unscrew the hazard warning switch knob

6. Installation is the reverse of removal.

   CAUTION
   Do not hammer on the steering wheel or column. Damage to the collapsible column could result.
