ADJUSTMENT

1. Raise the vehicle and support it with jackstands.
2. Spin the wheel rapidly and then tighten the adjusting screw until the wheel stops rotating.
3. Then, turn the adjusting screw back just ¹⁄₂ turn.
4. Turn the wheel to make sure it rotates without dragging.
5. Readjust if necessary.

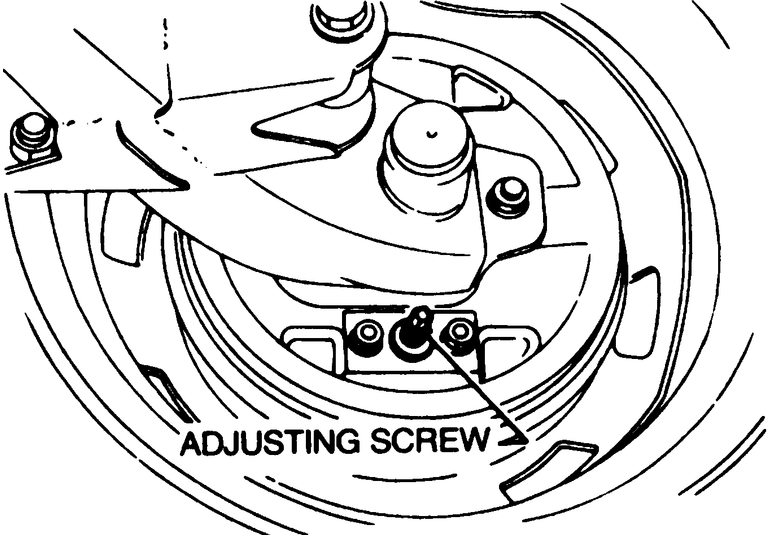

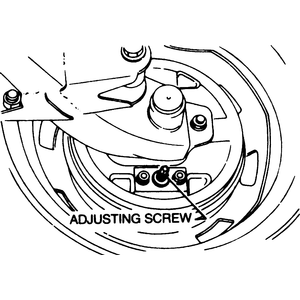

   Fig. 1: Location of the rear drum adjusting screw
