The power brake booster uses engine manifold vacuum against a diaphragm to assist in the application of the brakes. The vacuum is regulated to be proportional to the pressure placed on the pedal.
If brake performance is questionable and the booster unit suspect, conduct the following tests.

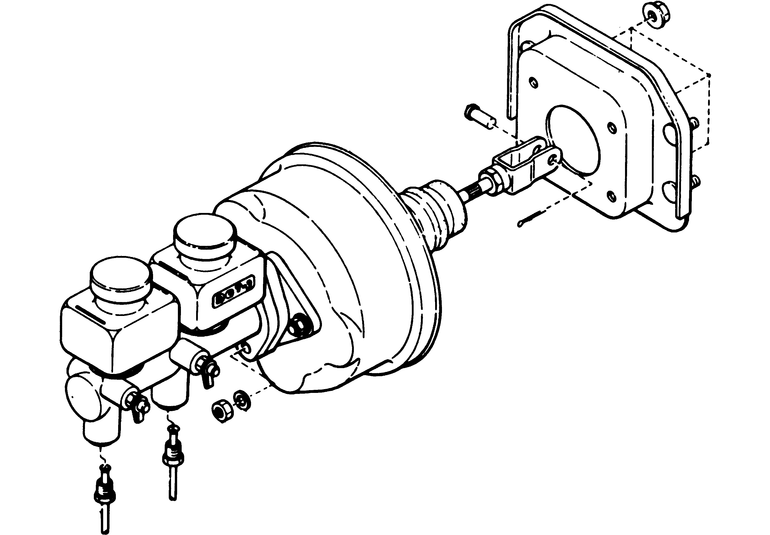

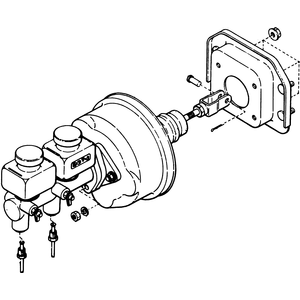

| Fig. 7: Common power booster and master cylinder mounting
|
