BODY AND TRIM

EXTERIOR

Doors

REMOVAL & INSTALLATION

NOTE: If the door being removed is to be reinstalled, matchmark the hinge position.

1. If the door is to be replaced with a new one, remove the trim panels weather sheets and all moldings.

   Fig. 1: Support the door with a floor jack. Use a piece of cloth or wood between the jack and the door to prevent damage to the door

2. If the door is to be replaced with a new one, remove the glass, locks and latches.
3. Support the door with a floor jack. Use a piece of cloth or wood between the jack and the door to prevent damage to the door.

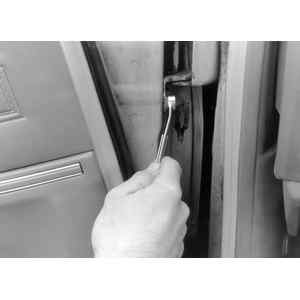

4. Remove the spring pin and the upper and lower hinge-to-body attaching bolts.
5. Lift the door from the car.

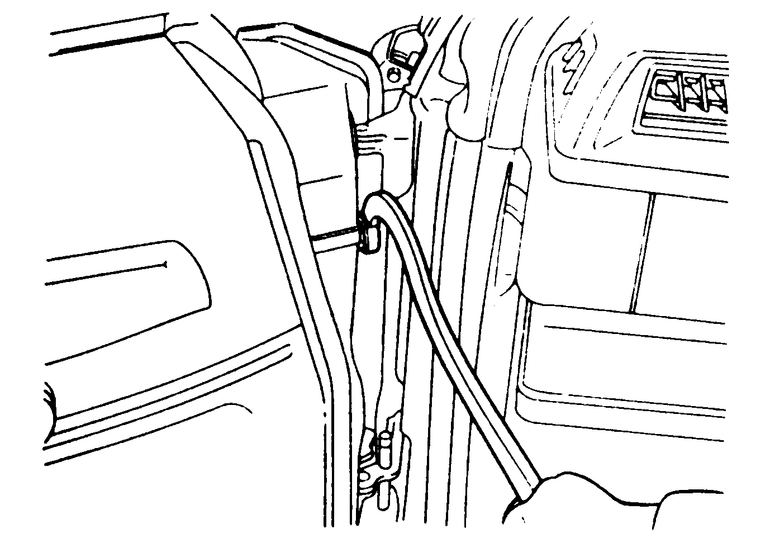

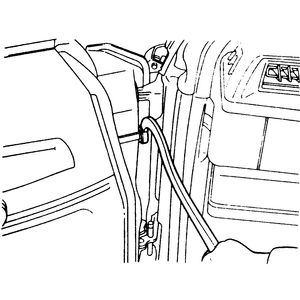

   Fig. 2: Remove the upper and lower hinge-to-body attaching bolts

   To install:

6. Install the door on the jack and position it to the door hinges.
7. Install the upper and lower hinge-to-body attaching bolts.
8. Install the spring pin.
9. Perform the adjustment procedures outlined in this section.
