DRAIN AND REFILL

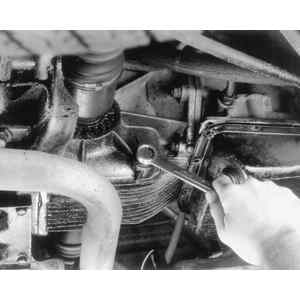

Fig. 1: Front differential case's drain plug — automatic transaxle equipped models only
Raise and support the vehicle safely.
Place a container of adequate capacity beneath the drain plug, located on the lower left side of the differential case, near the left axle shaft.
Remove the drain plug and allow the fluid to drain.
After draining, replace the drain plug and gasket. Tighten the plug to 17–20 ft. lbs. (23–26 Nm). Do not overtighten.
Remove the differential dipstick and fill the differential to the upper mark on the dipstick.
