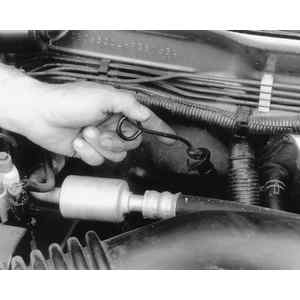

| Fig. 1: Remove the dipstick from the tube — Legacy
shown
|

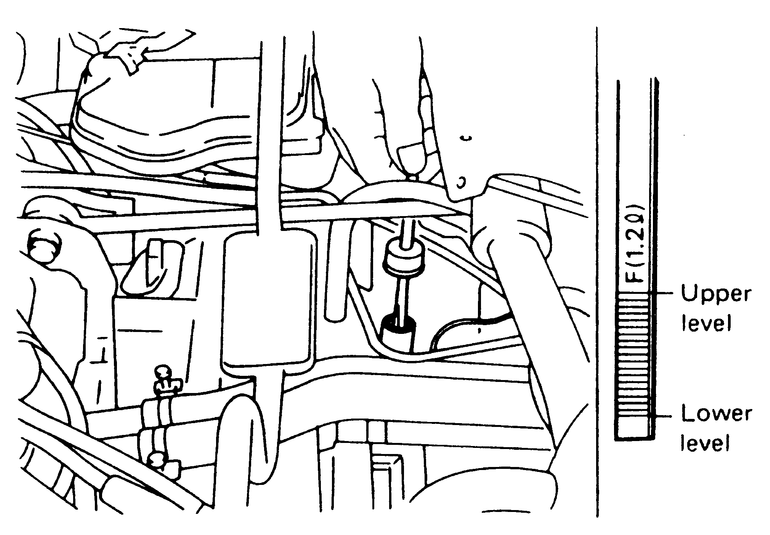

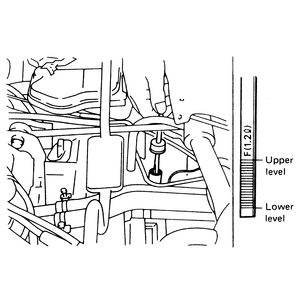

| Fig. 2: Front drive axle dipstick and level marks — 1.8L
models
|

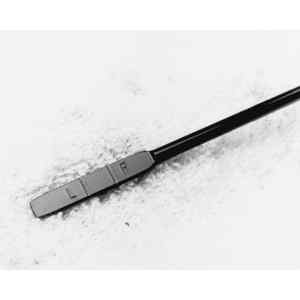

| Fig. 3: Dipstick hash marks — Legacy
shown, other models similar
|
The lubricant level in the drive axle is checked in the same manner as the engine oil, with the engine off and the vehicle parked on a level surface. The dipstick is located at the right rear of the engine, near the starter motor.
If the lubricant level is not at the upper mark on the dipstick additional gear oil is necessary and should be added through the dipstick filler tube. Use the proper weight oil with API classification of GL-5 or GLS. Do not overfill.
