REMOVAL & INSTALLATION

1. Mark or tag each hose prior to removal.
2. Loosen the hose clamp securing the hose to the canister.
3. After the clamp is loosened, slide the hose off. Continue the process until all the hose are disconnected.
4. Slide the evaporative canister out of the mounting bracket securing it in the engine compartment.

   To install:

5. Slide the canister into the mounting bracket.
6. Slide each hose on to the respective end on the canister.
7. Tighten each hose clamp.

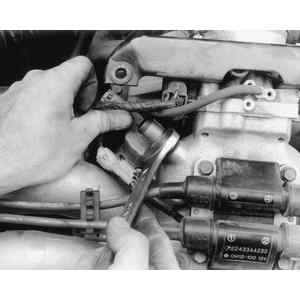

   Fig. 1: Disconnect the hose, then use a wrench to loosen the PCV valve at the intake manifold

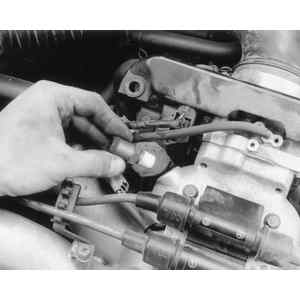

   Fig. 2: Remove the PCV valve from the manifold — 1991 Legacy shown

   Fig. 3: Apply Teflon® tape to the PCV valve threads before installing

8. Start the vehicle and check for leaks.
