SERVICING

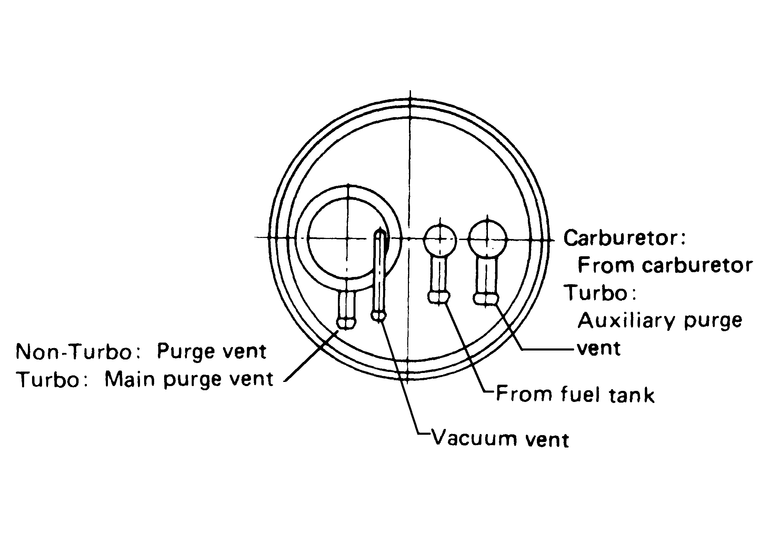

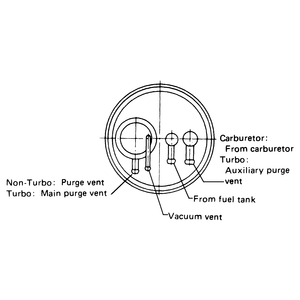

Fig. 1: Hose connections for evaporative emission canister

  1. Inspect the canister for holes or damage caused by debris.
  2. Inspect the hoses to the canister for holes, cracks or other damage.
  3. Disconnect the vacuum hose from the canister. Blow air through the hose to ensure that air does not leak.
  4. Disconnect the purge hose from the canister. Blow air through the hose to ensure that air does not leak.

    CAUTION
    Do not suck on the hose as this will cause fuel vapors to enter your mouth.

  5. Disconnect the evaporation hose from the fuel tank side. Blow air through the hose to ensure that air flows.
  6. Replace the canister and/or hoses if damaged.
