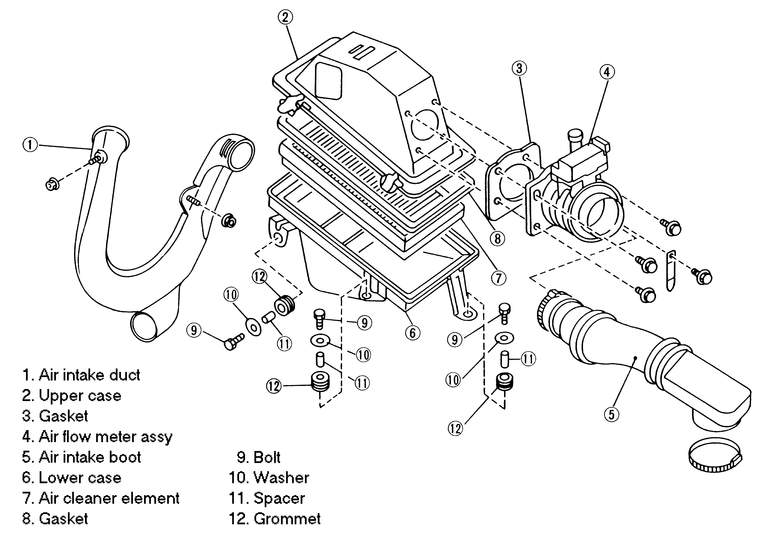

Airflow Meter

REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the air intake boot by loosening the clamps and sliding the boot from the airflow meter.
3. Disconnect the airflow meter electrical harness.
4. Remove the airflow meter attaching bolts.
5. Remove the airflow meter and discard the gasket.
6. Clean all gasket material from both mating surfaces.
7. Installation is the reverse of removal. Using a new gasket, install the airflow meter and tighten the bolts snugly.

   NOTE: Be careful as the air cleaner housing is plastic and could break easily.

8. Start the engine and listen for air leaks around the intake boot and airflow meter.
