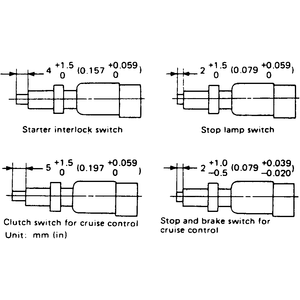

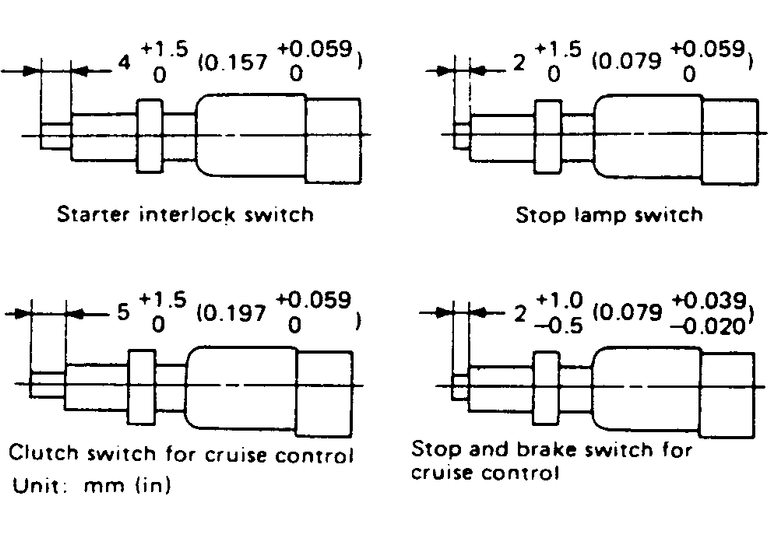

| Fig. 1: Clutch switch adjustment and related switches — except
Justy
|
This switch is threaded into the clutch pedal bracket and is retained in position by an adjustment nut and a locknut.
With the clutch pedal depressed, measure the clutch switch contact pin length. It should extend 0.197–0.256 in. (5–6.5mm). If not, loosen the locknut and adjust the adjustment nut until the correct length is achieved.

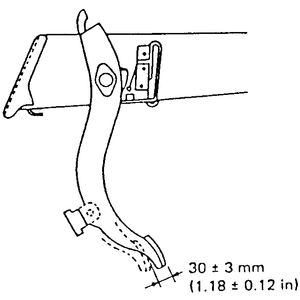

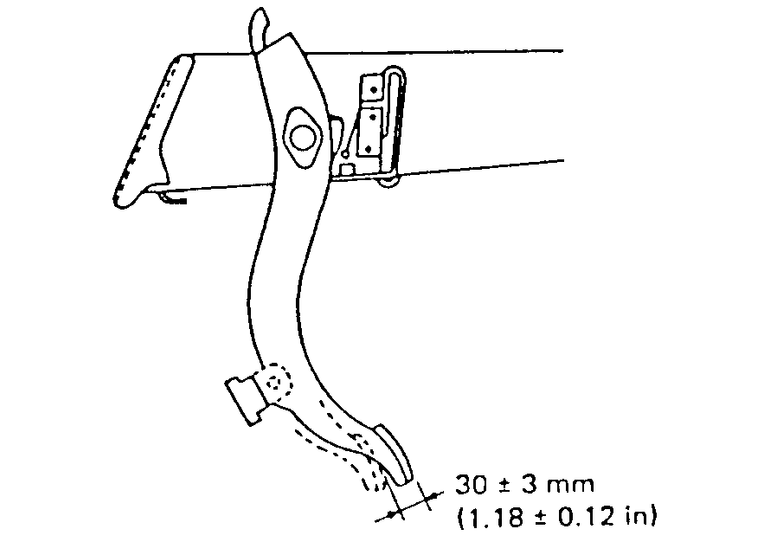

| Fig. 2: Clutch switch adjustment — Justy
|
This switch is attached to the side of the clutch pedal bracket and retained in place by 2 screws.
Check the clutch pedal free-play. It should be between 1.06–1.30 in. (26–33mm). If not, adjust free-play to specification and then adjust the switch by moving the switch mounting bracket. Ensure that the clutch switch activates when the pedal is depressed 1.06–1.30 in. (26–33mm).
