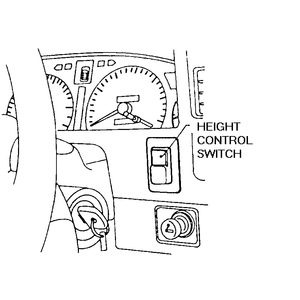

| Fig. 3: Example of height control switch — Legacy
and Impreza
|
The air suspension system incorporates a function which will display any malfunctions in the system by illuminating and blinking the height indicator lamp. If there is any abnormal conditions in the system, the height indicator will begin to blink, and the system should then be put into the self-diagnostic mode to determine the problem.
