PROCEDURE

Sedan, Coupe, Loyale, XT, Wagon and Brat

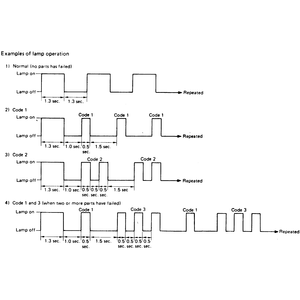

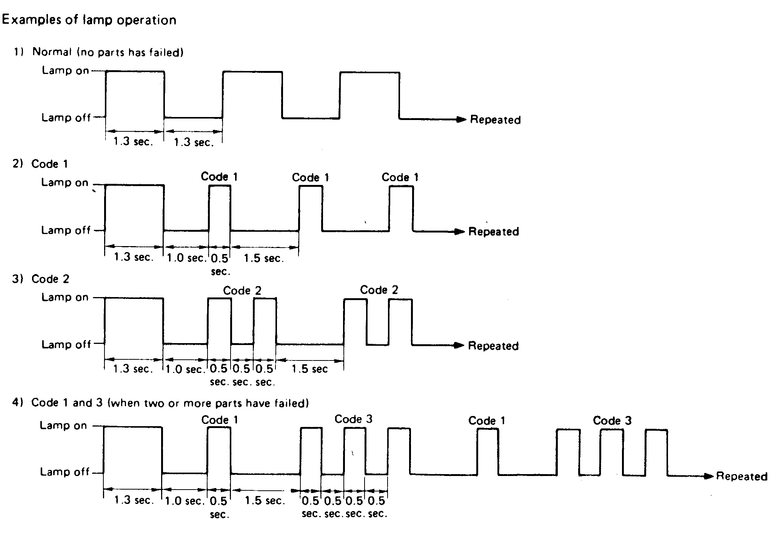

Fig. 1: Example of using the height indicator lamp to read the self-diagnostic codes

  1. Turn the ignition switch OFF, and the height selector switch to ON (HIGH).
  2. Turn the ignition switch ON, then turn the ignition switch OFF.
  3. Set the height selector switch to the OFF (NORMAL) position.
  4. Turn the ignition switch ON, then turn the ignition switch OFF.
  5. Set the height selector switch to the ON (HIGH) position and turn the ignition switch ON. The system is now in the self-diagnostic mode.
  6. Determine the system malfunction code by observing the number of blinks of the vehicle height sensor lamp.
  7. Check and correct any malfunctions.
  8. To clear the memory and reset the system, turn the ignition switch OFF and disconnect the negative battery cable for at least 10 seconds.
Legacy and Impreza

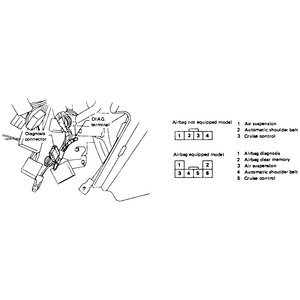

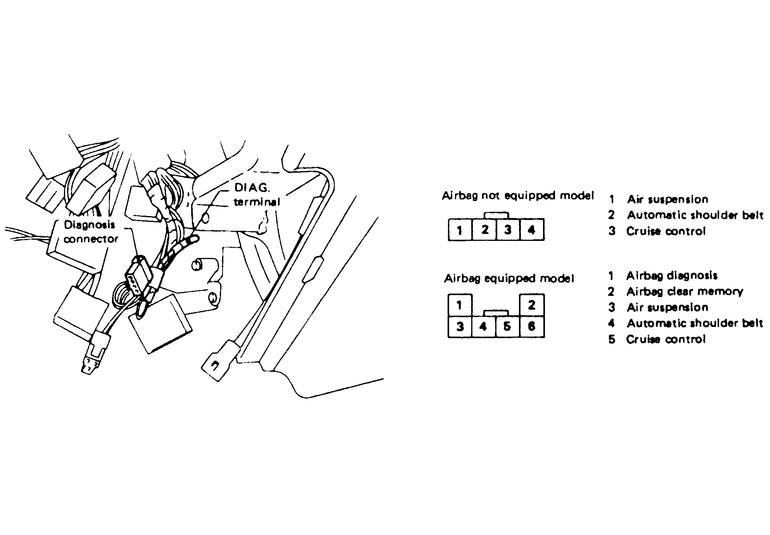

Fig. 2: Location and connection of air suspension diagnostic connector — Legacy and Impreza

  1. Turn the ignition switch OFF.
  2. Connect a jumper wire between terminal No. 1 and ground of the diagnostic connector under the driver side of the dash panel.
  3. Turn the ignition switch ON.
  4. The trouble codes will then be indicated by the blinking of the height indicator lamp.
  5. Check and correct any system malfunctions.
  6. To clear the memory and reset the system, turn the ignition switch OFF and disconnect the negative battery cable for at least 10 seconds.
