OVERHAUL

NOTE: Do not remove the large nut on top of the strut assembly unless the coil spring is properly compressed with a suitable spring compressor.

1. Remove the strut assembly from the vehicle.

   WARNING
   Remove the strut from the vehicle and install a spring compressor before removing the strut center nut.

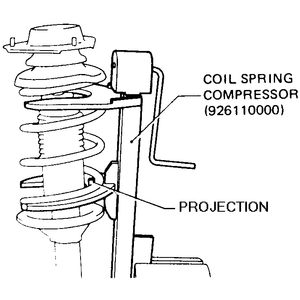

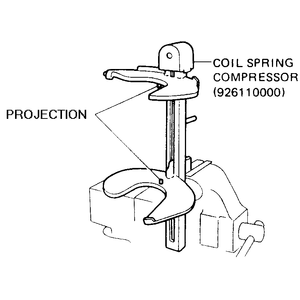

2. Place the strut assembly in a vise with a holding tool and install a spring compressor.
3. Compress the spring slightly.

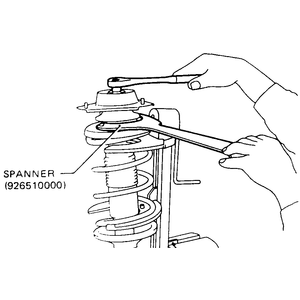

4. Loosen but do not remove the bearing cap locknut.
5. Compress the spring with the spring compressor then remove the locknut.
6. Remove the strut bearing cap, mounting insulator bracket and upper spring seat.
7. Remove the coil assembly, leaving the spring compressed.
8. Remove the strut boot and rebound bumper from the strut. Inspect and replace if worn.
9. Remove the strut retainer nut using a suitable wrench. Remove the strut insert from the assembly.
10. Installation is the reverse of removal. Pay particular attention of the following.

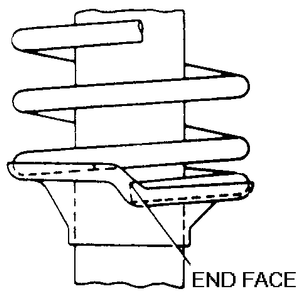

11. Install the coil spring on the strut assembly. Make sure the spring is properly positioned on the lower bracket.
12. Install the upper spring seat, mounting insulator and bearing cap. Make sure the upper spring seat is facing the proper direction. Tighten the locknut to 36–43 ft. lbs. (47–56 Nm).
13. Loosen and remove the spring compressor from the coil spring.
14. Install the strut to the vehicle.
