Proportioning Valve

REMOVAL & INSTALLATION

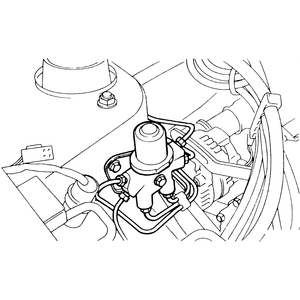

Fig. 1: Justy proportioning valve assembly

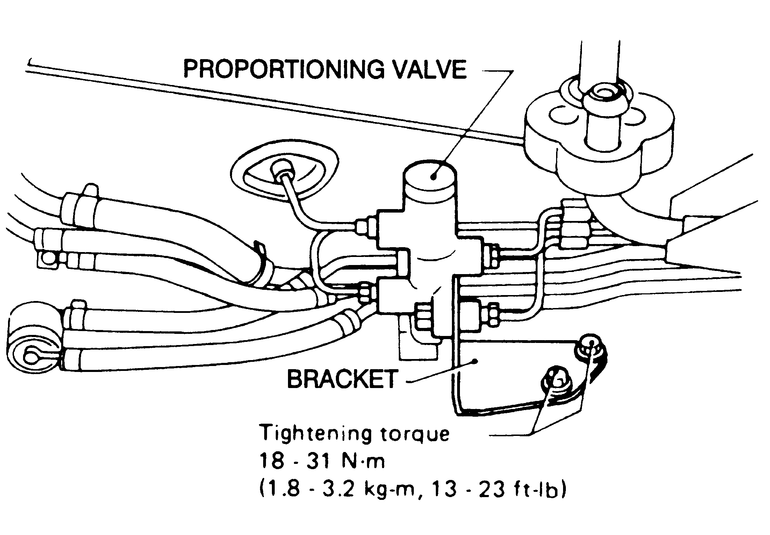

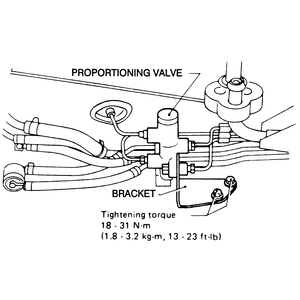

Fig. 2: Proportioning valve assembly — Coupe, Sedan, XT, Loyale, Wagon and Brat

  1. Raise and safely support the vehicle on jackstands.
  2. On some models the washer fluid reservoir must be removed.
  3. Disconnect. label and cap the brake lines from the proportioning valve.

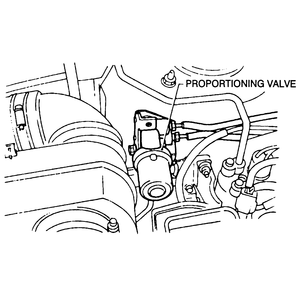

    Fig. 3: Proportioning valve assembly — Legacy and Impreza

  4. Unfasten the mounting bolt and remove the proportioning valve from the bracket.

    To install:

  5. Position the proportioning valve on the bracket and install the mounting bolt. Tighten the mounting bolt snugly.
  6. Connect the brake lines to the proportioning valve and tighten the fittings to 11 ft. lbs. (16 Nm).
  7. If the washer reservoir was removed, install it.
  8. Bleed the brake system.
  9. Lower the vehicle.
  10. Top off the master cylinder.
