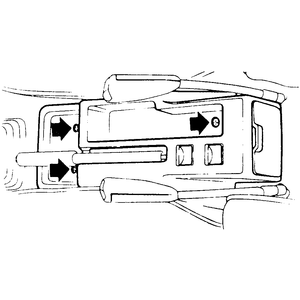

| Fig. 1: Locations of the center console fasteners — Justy
|

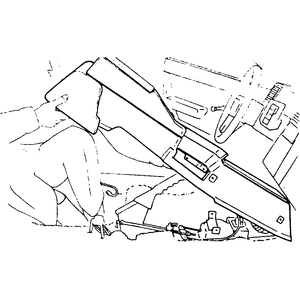

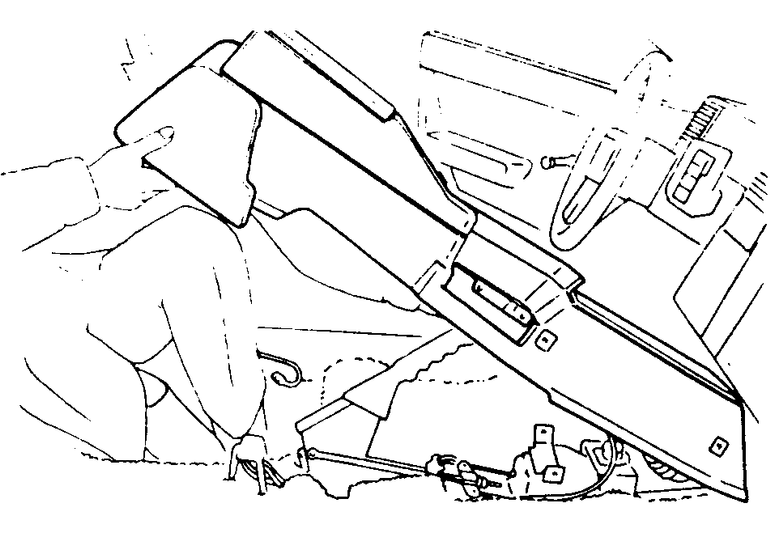

| Fig. 2: Removing the center console — XT
|

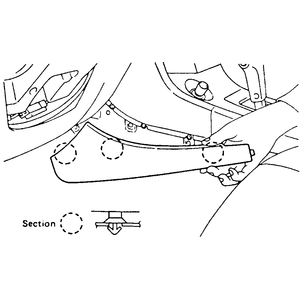

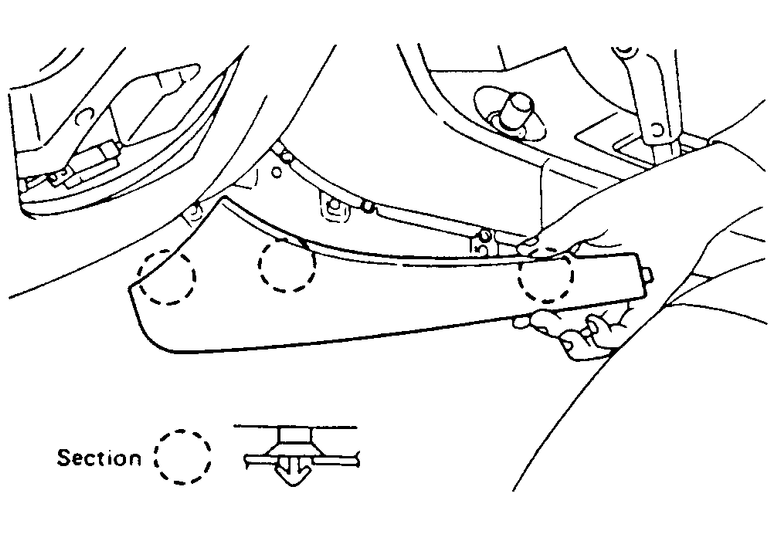

| Fig. 3: Removing the center console side covers — SVX
|

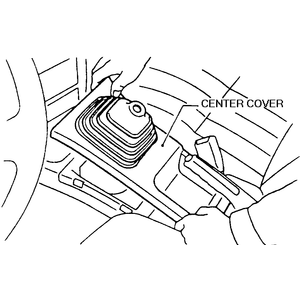

| Fig. 4: Removing the center console — 1990–94
Legacy
|

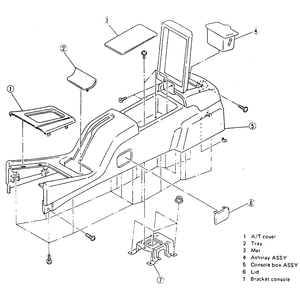

| Fig. 5: Center console components — 1995–96
Legacy
|

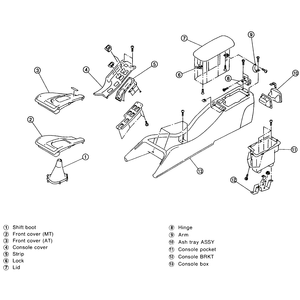

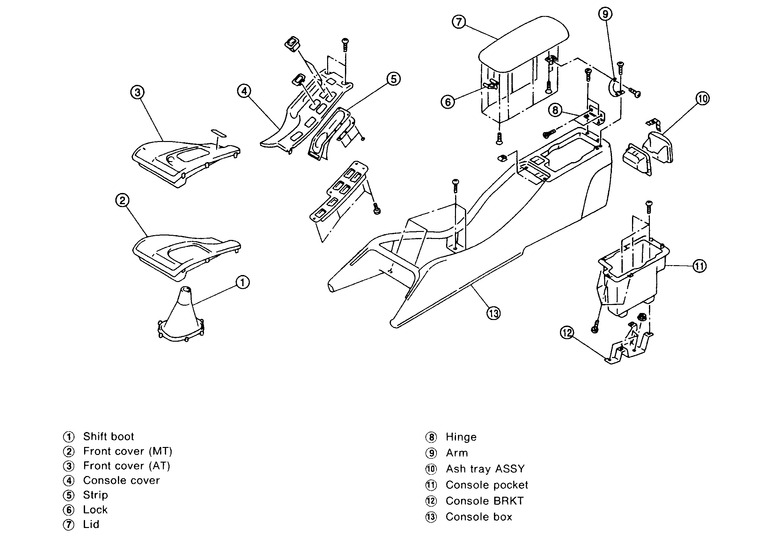

| Fig. 6: Center console components — SVX
|
CAUTION
Properly disarm the air bag on vehicles equipped with the SRS system. Failure
to do so can cause serious injury. The procedure can be found in Section 6 of
this manual under the heading "Supplemental Restraint System''.
- Discharge the air bag system, on models equipped. Disconnect the negative
battery cable.
- On Loyale and 1985–89 sedans, wagons and hatchbacks, remove the tray
from under the parking brake lever by prying it up.
- Pull the parking brake up and remove the shifter knob (with manual transaxle).
- Remove the console cover on XT and Impreza models and disconnect the cigarette
lighter. Remove the ventilation control lever knobs. On XT models, remove
the front seats.
- On the SVX remove the side console panels by pulling them off (they are
held in place by clips).
- Remove any remaining console trays and covers.
- Remove all console retaining screws and remove the console. On all models
except the Legacy, the console comes out in one piece, on Legacy models the
console comes out in 2 pieces.
To install:
- Install the console in position and install all retaining screws. Install
all console covers and boxes. Connect all electrical leads.
- Install the seats on the XT models.
- Connect the negative battery cable.
- Check the console to make sure that shifting is not interfered with and
that all pieces are positioned properly.
