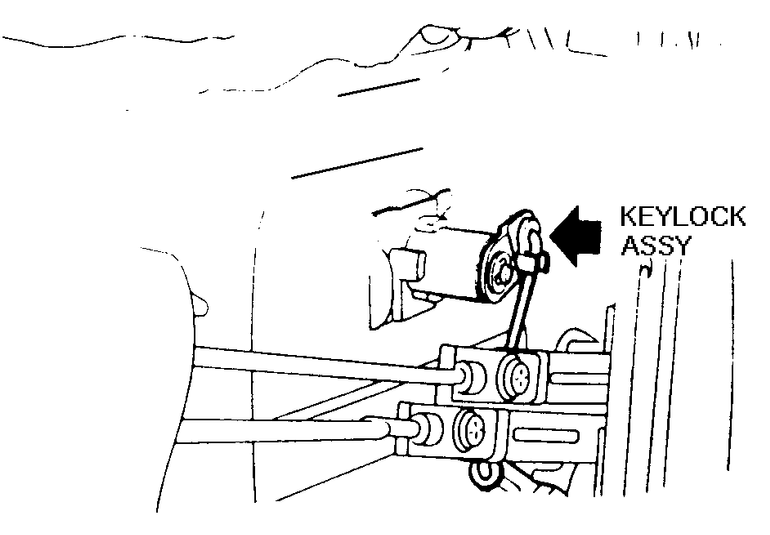

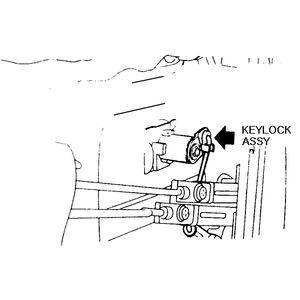

| Fig. 1: Disconnect the lock link at the key lock cylinder
|
NOTE: A key code is stamped on the lock cylinder to aid in
replacing lost keys.
- Remove the door trim panel.
- Pull the weather sheet, gently, away from the door lock access holes.
- Using a screwdriver, push the lock cylinder retaining clip upward, noting
the position of the lock cylinder.
- Remove the lock cylinder from the door.
- Reverse Steps 1 through 4 to install the lock cylinder. It's a good idea
to open the window before checking the lock operation, just in case it doesn't
work properly.
