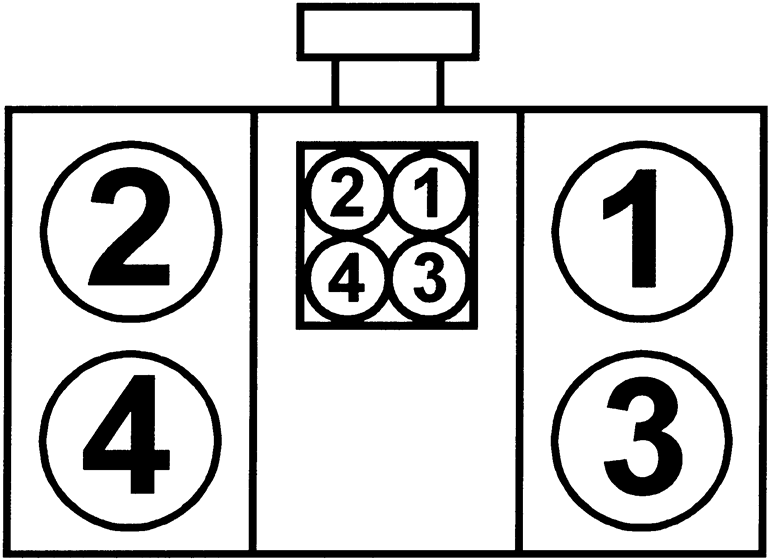

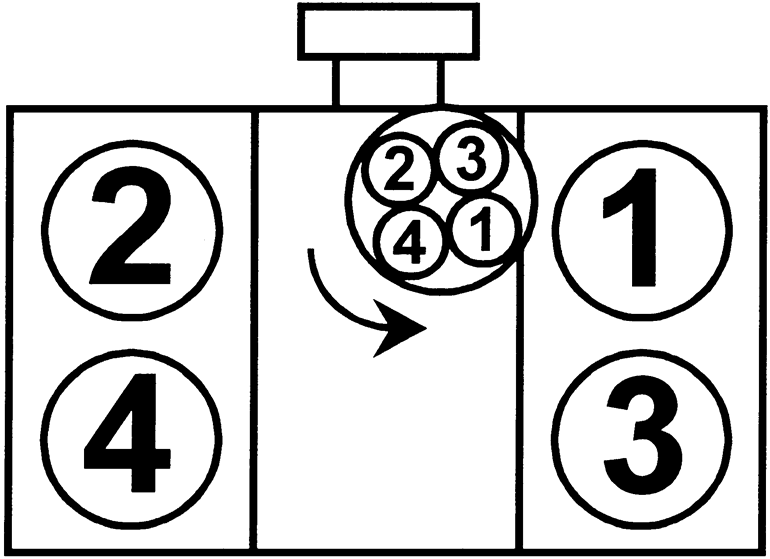

| 1.8L Engine Firing order: 1–3–2–4 Distributor
rotation: Counterclockwise
|
| 2.2L and 2.5L Engines Firing order: 1–3–2–4
Distributorless ignition system
|

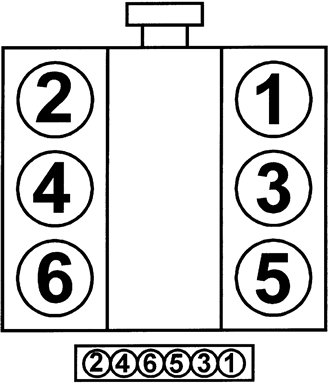

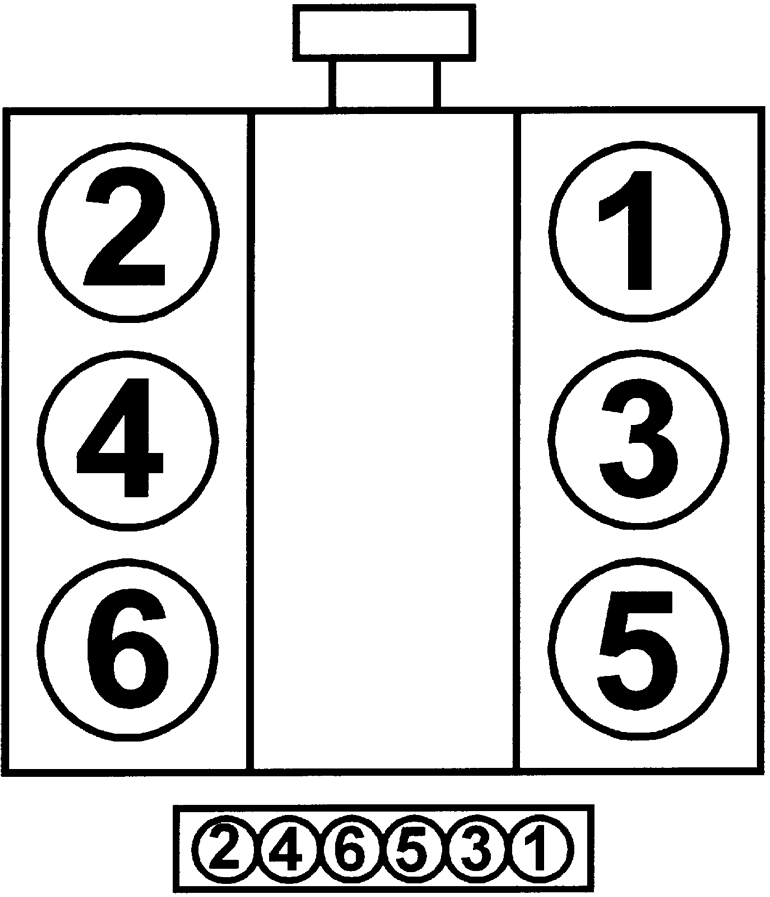

| 3.3L Engine Firing order: 1–6–3–2–5–4
Distributorless ignition system
|
|
|
|
|
|
|
|
|
|
|

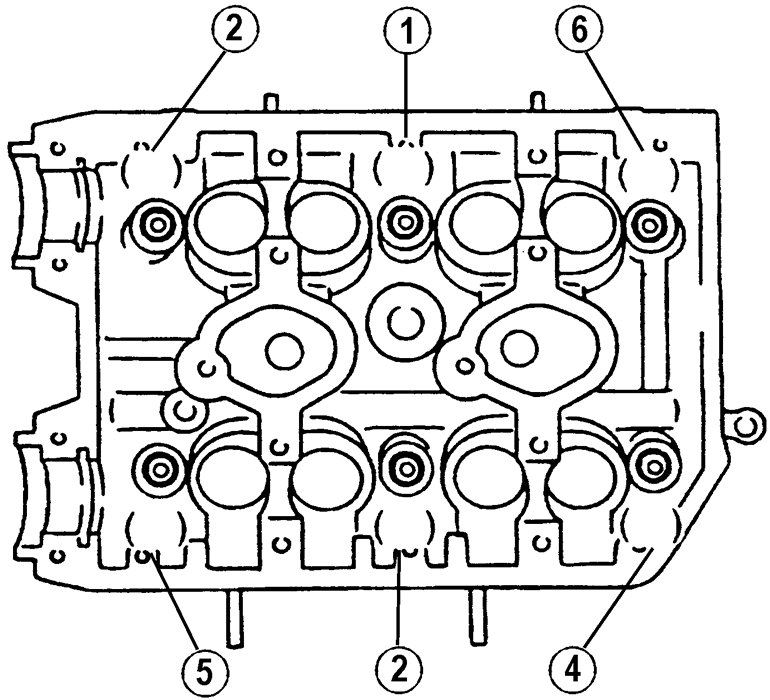

| Cylinder head bolt tightening sequence — 1.8L
and 2.2L engines
|
| Cylinder head bolt tightening sequence — 2.5L
engine
|
| Cylinder head bolt tightening sequence — 3.3L
engine
|
|
|
|
|
|
|
|
|
|
|
