INSTALLATION

Install or connect the following:

• Alternator
• Mounting bolts
• Drive belt. Adjust the tension to 0.276-0.354 in. (7-9mm) for new or 0.354-0.433 in. (9-11mm) for used. Torque the slider bolt to 4-6 ft. lbs. (6-10 Nm) and the lockbolt to 16.5 ft. lbs. (19.5 Nm).
• Belt cover
• Wires
• Negative battery Cable

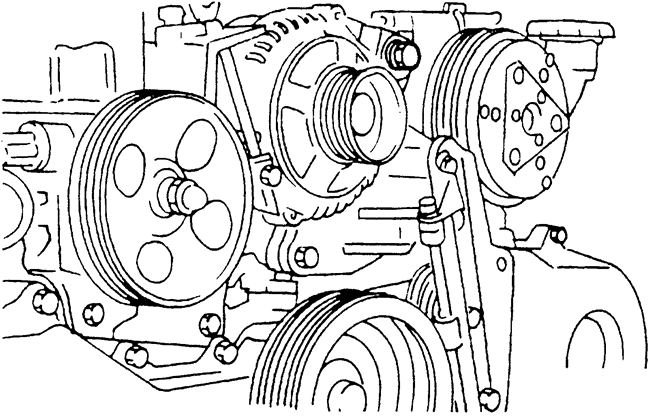

  Fig. 1: View of alternator mounting
