Starter

REMOVAL & INSTALLATION

1. Before servicing the vehicle, refer to the precautions in the beginning of this section.
2. Remove or disconnect the following:
   • Negative battery
   • Air intake duct and assembly
   • Wires
   • Starter

   To install:

3. Install or connect the following:
   • Starter. Torque the mounting bolts to 37 ft. lbs. (50 Nm).
   • Wires
   • Air intake duct and assembly
   • Negative battery

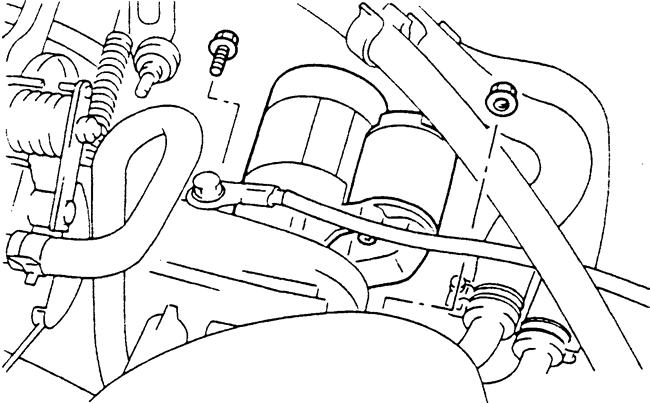

     Fig. 1: View of the starter mounting
