Fuel Pump

REMOVAL & INSTALLATION

1. Before servicing the vehicle, refer to the precautions in the beginning of this section.
2. Remove the rear seat cushion and access panel.
3. Properly relieve the fuel system pressure.
4. Disconnect the negative battery cable.
5. Clean any debris away from the fuel pump mounting to prevent it from entering the tank.
   • Fuel pump electrical connector
   • Fuel delivery and return hoses
   • Fuel pump mounting nuts
   • Fuel pump out of the fuel tank

   To install:

6. Replace the sealing gaskets for the fuel pump.
7. Install or connect the following:
   • Fuel pump into the tank. Torque the mounting nuts in sequence to 39 inch lbs. (4.4 Nm).

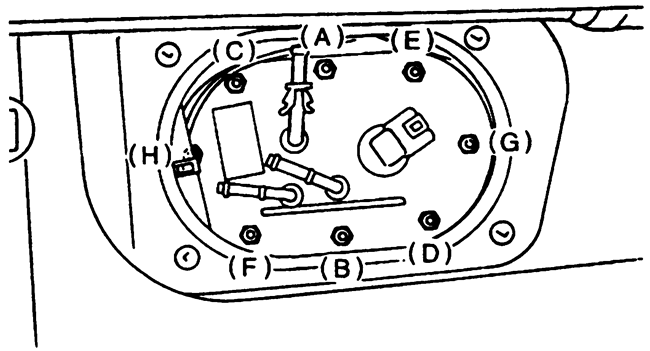

     Fig. 2: Fuel pump mounting nut tightening sequence

   • Fuel delivery and return hoses
   • Fuel pump electrical connector
   • Fuel filler cap
   • Negative battery cable
8. Start the vehicle and check for leaks.
9. Install the fuel pump access cover and rear seat cushion.
