Fuel Injector

REMOVAL & INSTALLATION

1999-02

1. Before servicing the vehicle, refer to the precautions in the beginning of this section.
2. Properly relieve the fuel system pressure.
3. Remove or disconnect the following:
   • Negative battery cable
   • Air duct and cleaner assembly
   • Resonator chamber
   • Spark plug wires No. 1 and 3
   • V-belt covers
   • Power steering pump belt
   • Power steering pipe bracket from manifold
   • Power steering pump and seat aside
   • Wires from fuel injector
   • Injector pipe from intake manifold
   • Fuel injector

   To install:

4. Install or connect the following:
   • Fuel injector
   • Injector pipe to intake manifold
   • Wires to fuel injector
   • Power steering pump
   • Power steering pipe bracket to manifold
   • Power steering pump belt
   • V-belt covers
   • Spark plug wires No. 1 and 3
   • Resonator camber
   • Air duct and cleaner assembly
   • Negative battery cable

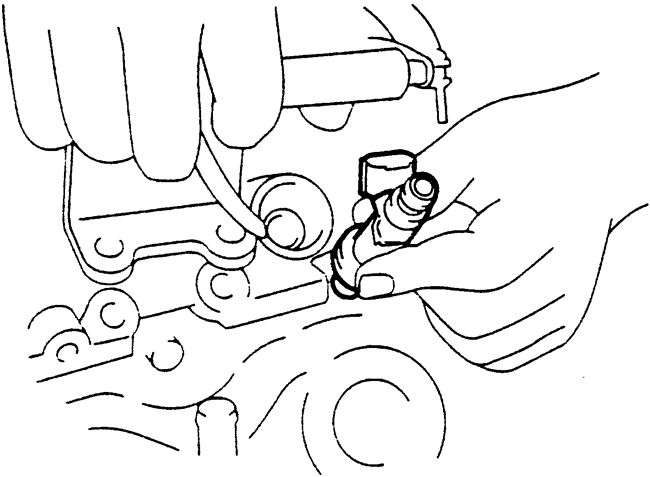

     Fig. 1: View of fuel injector removal on 1999-02 models
