Catalytic Converters – Front and Rear

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Center exhaust pipe

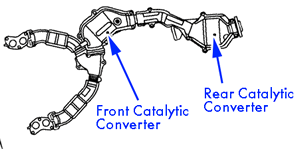

   • Front catalytic converter (1) from rear catalytic converter (2)

To Install:

Note: Replace all gaskets.

1. Install or connect the following:
   • Front catalytic converter and rear catalytic converter
   • Center exhaust pipe
