Timing Belt Cover and Seal
Removal & Installation

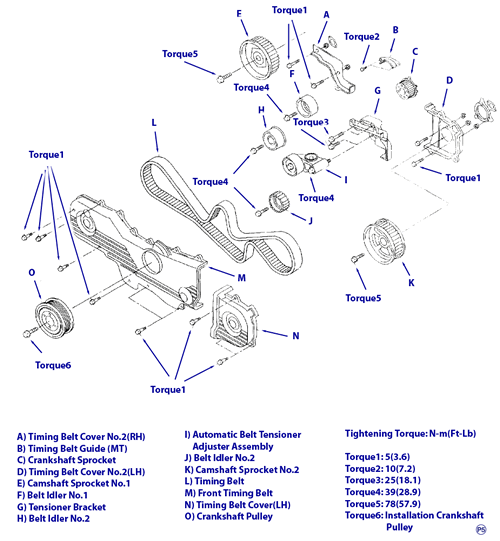

Timing Belt – 2.5L SOHC Engine

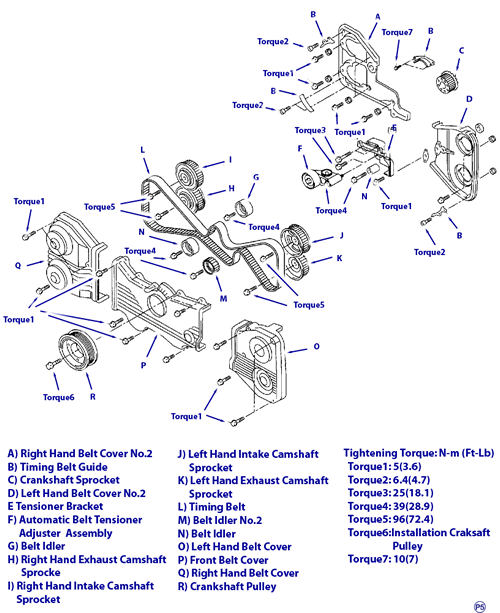

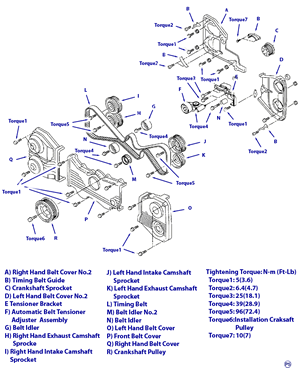

Timing Belt – 2.0L DOHC Engine

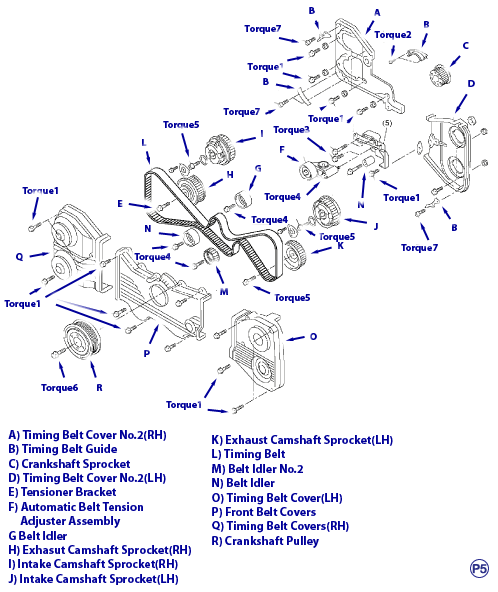

Timing Belt – 2.5L DOHC Engine

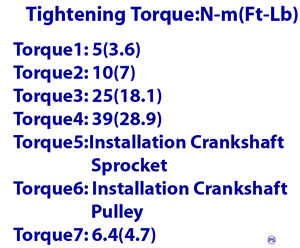

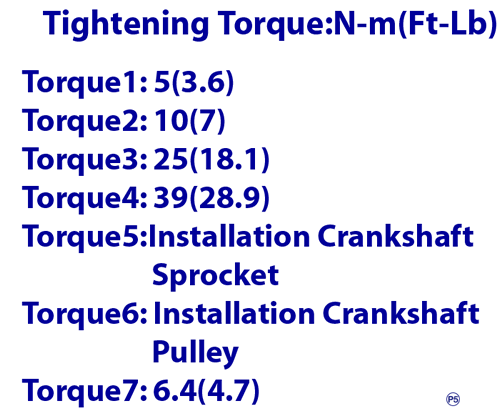

Timing Belt Legend – 2.5L DOHC Engine
To Remove:
Before servicing the vehicle, refer to the precautions at the beginning of this section.
Remove or disconnect the following:
V-belt
Crankshaft pulley
Timing belt covers
To Install:
Install or connect the following:
Timing belt covers
Crankshaft pulley
V-belt
