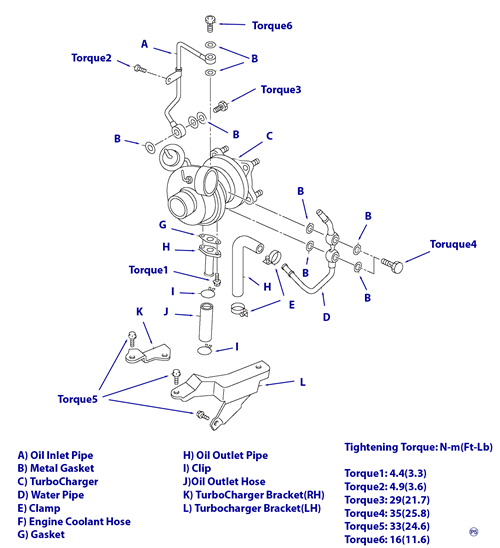

Turbocharger

Removal & Installation

2.0L DOHC Engine and 2.5L DOHC Engine

To Remove:

1. Before servicing the vehicle, refer to precautions at the beginning of this section.
2. Disconnect the battery ground cable.
3. Raise and safely support the vehicle.
4. Remove the center exhaust pipe.
5. Lower the vehicle.
6. Remove or disconnect the following:
   • Turbocharger joint pipe from turbocharger
   • Engine coolant hose which is connected to coolant filler tank
   • Clamp which secures the turbocharger to intake duct
   • Bolt which secures the bracket of oil pipe to turbocharger
   • Oil pipe from turbocharger
   • Turbocharger bracket
   • Oil outlet hose from pipe
   • Turbocharger from engine compartment

To Install:

1. Install or connect the following:
   • Oil outlet hose to outlet pipe
   • Turbocharger to intake duct
     1. Torque to: 27 inch lbs. (3 Nm)
   • Oil pipe to turbocharger
     1. Torque to: 12 ft. lbs. (16 Nm)
   • Joint pipe to turbocharger
     1. Torque to: 26 ft. lbs. (35 Nm)

     Note: Replace the gasket with a new one.

   • Turbocharger bracket
     1. Torque to: 24.6 ft. lbs. (33 Nm)
   • Engine coolant hose
2. Safely raise and support the vehicle.
3. Install the center exhaust pipe.
