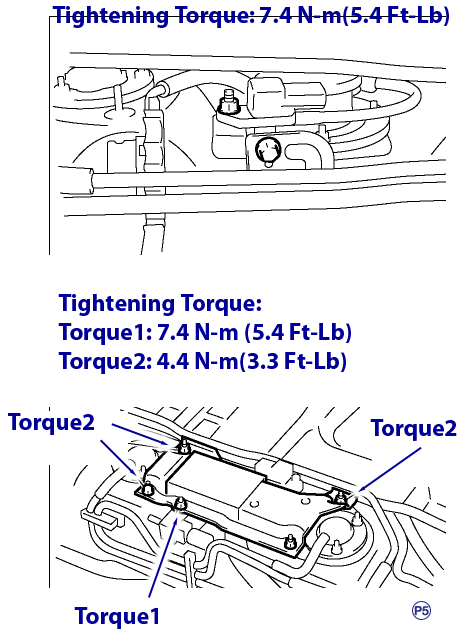

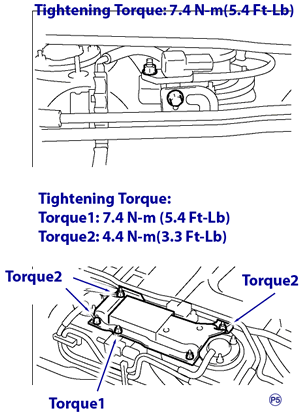

Fuel Tank Pressure Sensor

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Battery ground cable
   • Fuel tank
   • Protector cover
   • Fuel tank pressure sensor connector
   • Clips holding fuel lines to fuel tank
   • Fuel tank sensor from bracket
   • Pressure hose from fuel tank pressure sensor

To Install:

1. Install or connect the following:
   • Pressure hose to fuel tank pressure sensor
   • Fuel tank sensor to bracket
   • Clips for fuel lines
   • Fuel tank pressure sensor connector
   • Fuel tank
   • Battery ground cable
