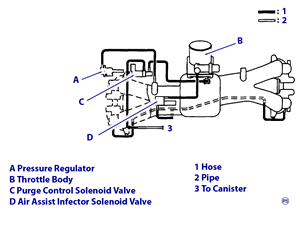

Fuel Pressure Regulator

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Disconnect battery negative cable.
3. Release fuel pressure.
4. Remove or disconnect the following:
   • Fuel lines to regulator
   • Regulator mounting screw
   • Regulator

To Install:

1. Install or connect the following:
   • Regulator
   • Regulator mounting screw
   • Fuel lines to regulator
   • Battery negative cable
