Fuel Pump

Removal & Installation

To Remove:

WARNING
Be careful not to spill fuel on the floor. During work procedures, if fuel tank is more than 3/4 full, be careful because fuel may spill.

Note: Fuel pump assembly consists of fuel pump and fuel level sensor.

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Release fuel pressure.
3. Remove or disconnect the following:
   • Fuel cap
   • Battery ground cable
4. Safely raise and support the vehicle

5. To drain fuel from fuel tank, set a container under the vehicle and remove drain plug from fuel tank.
6. Tighten fuel drain plug.
   • Torque to: 19 ft. lbs. (26 Nm)

7. Raise rear seat and turn floor mat up
8. Remove or disconnect the following:
   • Access hole lid
   • Connector from fuel pump
   • Quick connector’s
   • Fuel delivery hose, jet pump hose, and return hose
   • Fuel pump assembly to fuel tank nuts
   • Fuel pump assembly from fuel tank

To Install:

Note: Always use new gaskets. Ensure sealing portion is free from fuel or foreign particles before installation.

1. Install or connect the following:

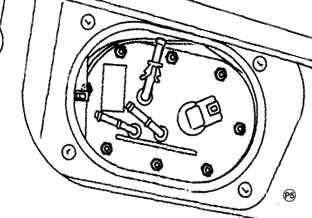

   • Fuel pump assembly to fuel tank and tighten in sequence
     1. Torque to: 3.3 ft. lbs. (4.4 Nm)
   • Fuel delivery hose and return hose
   • Quick connector’s
   • Jet pump hose
   • Connector to fuel pump
   • Access hole lid and turn floor mat and rear seat down

   • Fuel pump relay connector
   • Battery negative connector
   • Fuel cap
