Dome Light

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Remove or disconnect the following:
   • Ground cable from battery

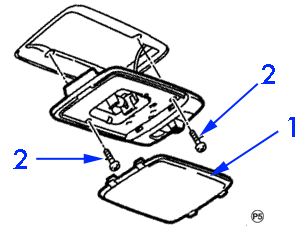

   • Lens (1) and room light mounting screws (2)
   • Harness connectors
   • Dome light

To Install:

1. Install or connect the following:
   • Dome light
   • Harness connectors
   • Lens and room light mounting screws
   • Ground cable to battery
