Windshield Washer Pump

Removal & Installation

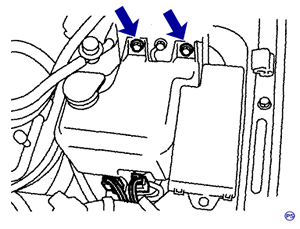

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Open hood.
3. Remove or disconnect the following:
   • Washer bottle tank bolts
   • Hose and connector
   • Washer tank
   • Washer pump

To Install:

1. Install or connect the following:
   • Washer pump
   • Washer tank
   • Hose and connector
   • Washer bottle tank bolts
2. Close hood
