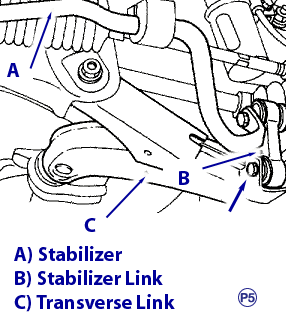

Sway Bar

Removal & Installation

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Safely raise and support the vehicle.
3. Remove or disconnect the following:
   • Stabilizer link to rear lateral link bolts
   • Stabilizer to bracket bolts

To Install:

1. Install or connect the following:
   • Stabilizer to stabilizer bracket
     1. Torque to: 18 ft. lbs. (25 Nm)
   • Stabilizer link to rear lateral link
     1. Torque to: 33 ft. lbs. (45 Nm)

Note: Ensure that bushing and stabilizer have the same identification colors when installing.
