Speed Sensors

Removal & Installation

Front

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Disconnect battery ground cable.

3. Safely raise and support the vehicle.
4. Remove or disconnect the following:
   • Front ABS sensor connector located next to front strut mounting house in engine compartment

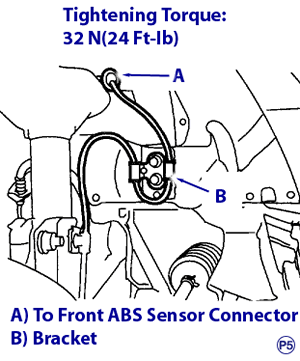

   • Sensor harness to strut bolts
   • Sensor harness to body bolts

   • Front ABS sensor to housing bolts
   • Front ABS sensor

CAUTION
Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal. Do not pull sensor harness during removal.

To Install:

1. Install or connect the following:
   • Front ABS sensor on housing (temporarily)

     CAUTION
     Be careful not to strike ABS sensor's pole piece and tone wheel's teeth against adjacent metal parts during installation.

   • Front ABS sensor on strut and wheel apron bracket
     1. Torque to: 24.6 ft. lbs. (33 Nm)
2. Check and adjust clearance between sensor and toner wheel by placing a thickness Gauge between ABS sensor's pole piece and tone wheel's tooth face.
   • ABS sensor standard clearance: 0.3 - 0.8 mm (0.012 - 0.031 inch)
3. Tighten ABS sensor on housing.
   • Torque to: 24 ft. lbs. (32 Nm)

   CAUTION
   Check the marks on the harness to make sure that no distortion exists.

   Note: If the clearance is outside specifications, adjust the gap using spacer (Part No. 26755AA000).

4. After confirmation of the ABS sensor clearance, connect connector to ABS sensor.
5. Lower the vehicle.
6. Connect connector to battery ground cable.

Rear

To Remove:

1. Before servicing the vehicle, refer to the precautions at the beginning of this section.
2. Disconnect battery ground cable.
3. Safely raise and support the vehicle.
4. Remove or disconnect the following:
   • Rear seat
   • Rear ABS sensor connector

   • Rear sensor harness bracket from rear trailing link and bracket
   • Rear ABS sensor from back plate

To Install:

1. Install or connect the following:
   • Rear ABS sensor to back plate
   • Rear sensor harness to rear trailing link
     1. Torque to: 24.6 ft. lbs. (33 Nm)
2. Tighten rear ABS sensor on rear arm after checking that standard clearance is 0.7mm-1.2mm.
   • Torque to: 24.6 ft. lbs. (33 Nm)
3. Install or connect the following:
   • Rear ABS sensor connector
   • Rear seat
4. Lower the vehicle.
