Exhaust Manifold

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery
   • Under cover

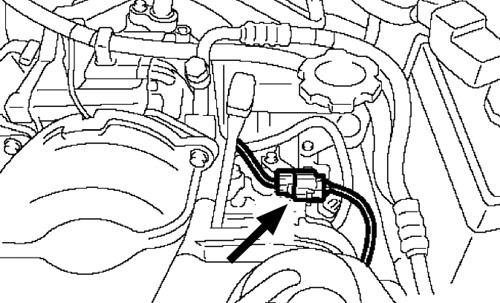

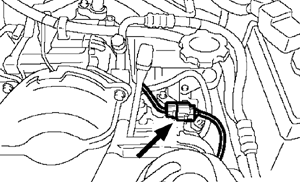

     Left Oxygen Sensor

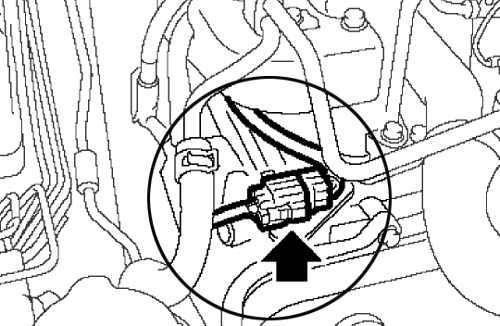

     Right Oxygen Sensor

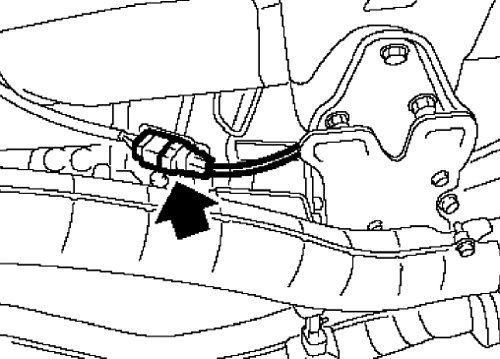

     Rear Oxygen Sensor

   • Oxygen sensor’s

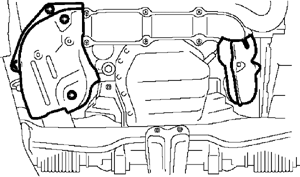

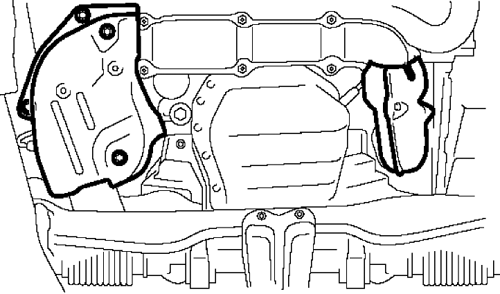

     Exhaust Heat Shields

   • Lower exhaust manifold cover (RH)
   • Lower and upper exhaust manifold covers (LH)

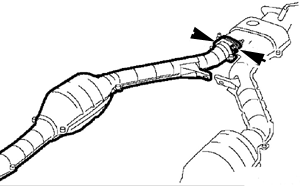

     Front from Rear Exhaust

   • Front exhaust pipe to rear pipe fasteners

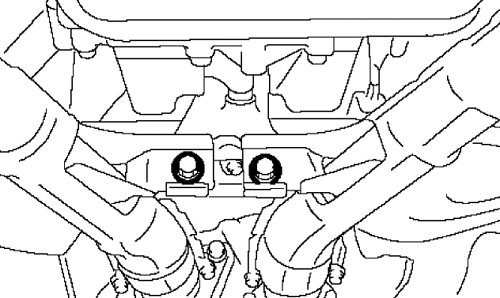

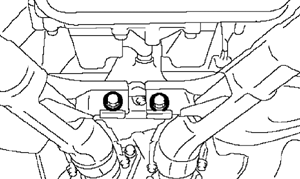

     Pipe to Hanger Bracket

   • Front exhaust pipe hanger bolts

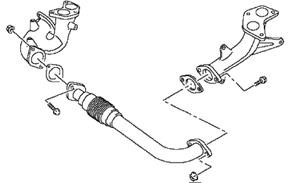

     Front Exhaust Pipe Assembly (w/turbo)

   • Front exhaust pipe assembly to turbocharger joint pipe nuts and bolts (w/turbo)

     Front Exhaust Pipe Assembly

   • Front exhaust pipe assembly to cylinder head exhaust port nuts, While holding the front exhaust pipe assembly with one hand
   • Front exhaust pipe assembly

To Install:

NOTE: Replace the gaskets.

1. Install or connect the following

   Front Exhaust Pipe Assembly (w/turbo)

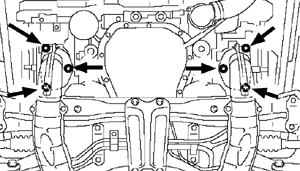

   • Front exhaust pipe to exhaust manifolds

     Exhaust Heat Shields

   • Front exhaust pipe covers
     1. Torque specification: 7.5 Nm (5.5 ft. lbs.)
   • Upper exhaust manifold cover (RH)
     1. Torque specification: 19 Nm (13.7 ft. lbs.)

   Front Exhaust Pipe Assembly

   • Front exhaust pipe assembly
     1. Torque specification: 35 Nm (26.0 ft. lbs.)

   Front Exhaust Pipe Assembly (w/turbo)

   • Exhaust manifold (RH) to turbocharger joint pipe

   Left Oxygen Sensor

   Right Oxygen Sensor

   Rear Oxygen Sensor

   • Oxygen sensors
   • Under cover
   • Battery ground cable to battery
