Radiator

Removal & Installation

To Remove:

WARNING
The radiator is pressurized. Wait until the engine cools down before working on the radiator.

1. Disconnect the ground cable from battery
2. Remove the under cover
3. Drain the engine coolant completely
4. Disconnect or remove the following

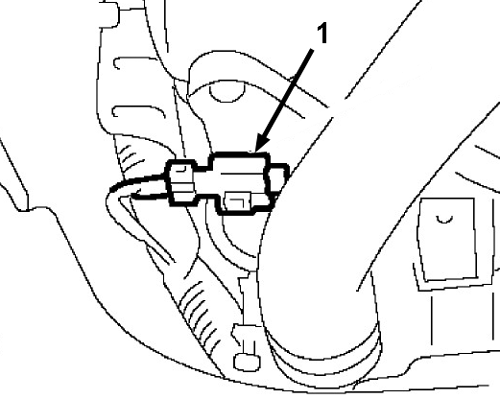

   Fan Motor Connectors

   • Radiator main fan motor and sub fan motor connectors

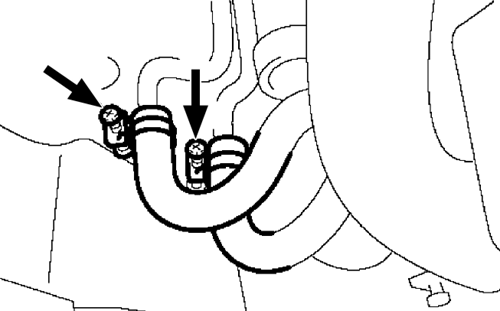

     ATF Cooler Pipe's

   • ATF cooler hose from ATF pipe and plug the openings in the hose and radiator with caps (A/T model)

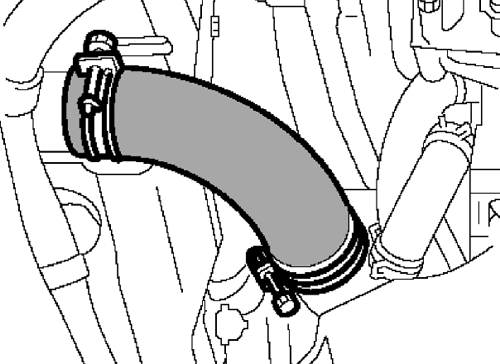

     Radiator Outlet Hose

   • Radiator outlet hose from thermostat cover

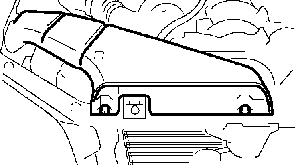

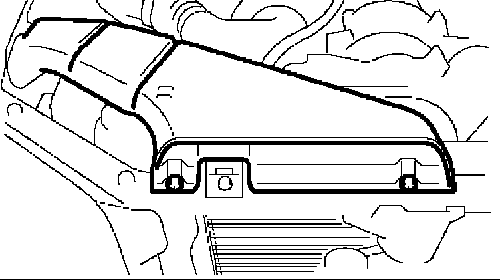

     Air Intake Duct

   • Air intake duct
   • V-belt covers

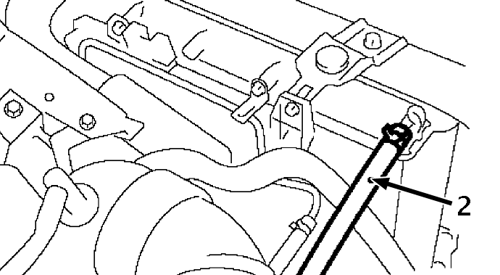

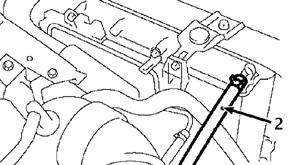

     Overflow Hose

   • Overflow hose
   • Reservoir tank

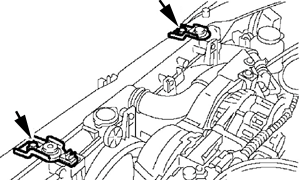

     Upper Hose and Brackets

   • Upper radiator inlet hose
   • Radiator upper brackets
   • Radiator from vehicle

To Install:

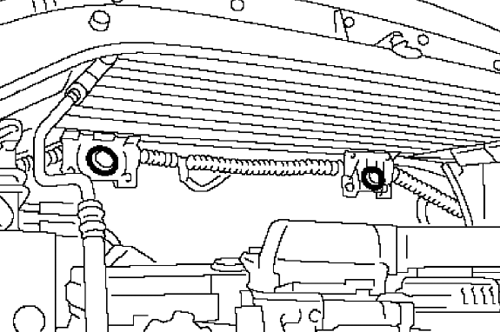

1. Place radiator mounting cushions on radiator support
2. Install or connect the following

   NOTE: Fit the pins on lower side of radiator into the cushions on body side.

   • Radiator to vehicle

     Upper Hose and Brackets

   • Radiator brackets
   • Radiator inlet hose
   • Water tank hose
   • Reservoir tank
   • V-belt cover

     Air Intake Duct

   • Air intake duct

     ATF Cooler Pipe's

   • ATF cooler hoses (AT model)

     Radiator Outlet Hose

   • Radiator outlet hose
   • Radiator main fan motor and sub fan motor connectors
   • Under cover
   • Battery ground cable to battery
3. Fill engine coolant
4. Check the ATF level
