Rear Catalytic Converter

Removal & Installation

To Remove:

1. Remove the center exhaust pipe

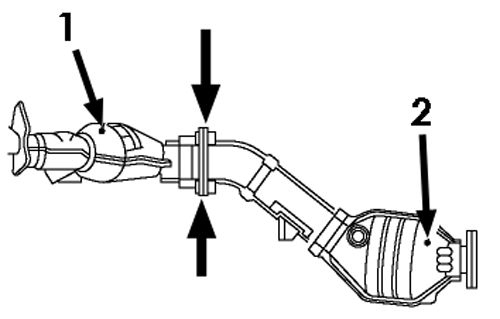

2. Separate the rear catalytic converter (B) from front catalytic converter (A)

To Install:

NOTE: Replace the gaskets with new ones.

1. Place the rear catalytic converter (B) from front catalytic converter (A)
2. Install the center exhaust pipe
