Front Catalytic Converter

Removal & Installation

To Remove:

1. Remove the center exhaust pipe

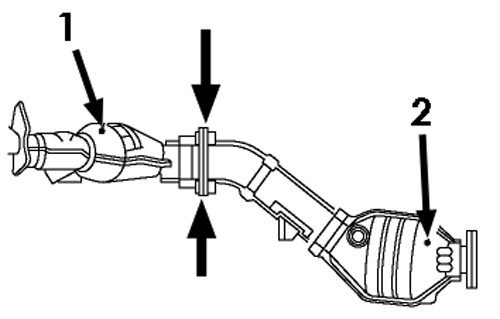

2. Separate the front catalytic converter (A) from rear catalytic converter (B)

To Install:

NOTE: Replace the gaskets with new ones.

1. Place the front catalytic converter (A) to rear catalytic converter (B)
2. Install the center exhaust pipe
