Rocker Arm (Valve) Cover

Removal & Installation

To Remove:

1. Disconnect or remove the following for right side valve cover service

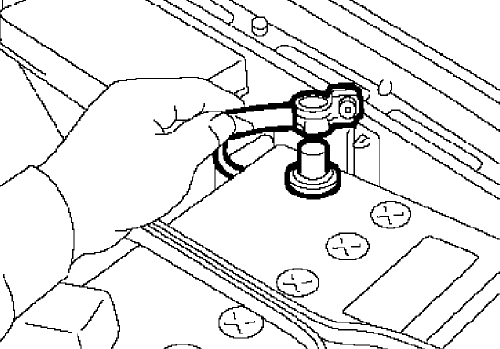

   Negative Battery Cable

   • Ground cable from battery

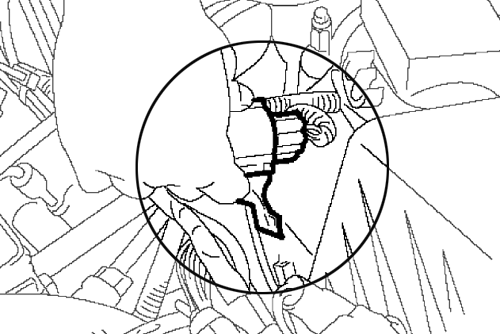

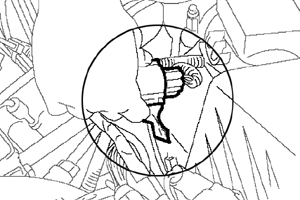

     Engine Harness Connector

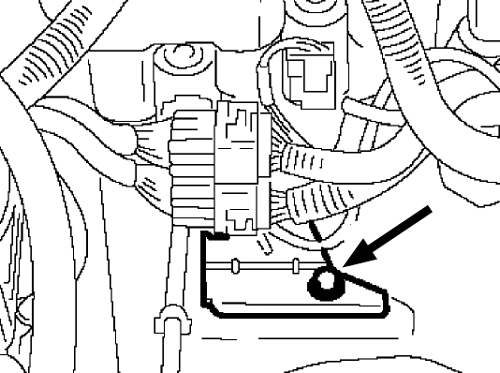

     Engine Harness Bracket

   • Engine harness connector with bracket from air cleaner upper cover
   • Air intake duct
   • Air cleaner case
   • Ignition coil connector
   • Ignition coil
   • PCV hose from rocker cover

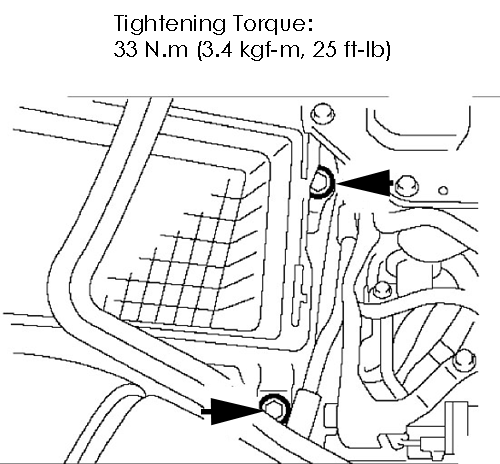

     Valve Cover

   • Rocker cover mounting bolts
   • Rocker cover
2. Disconnect or remove the following for left side valve cover service

   Negative Battery Cable

   • Battery cable
   • Battery and battery carrier

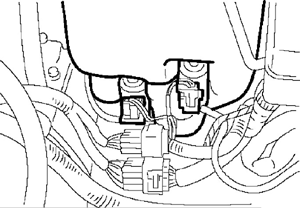

     Washer Motor Connector

   • Washer motor connectors

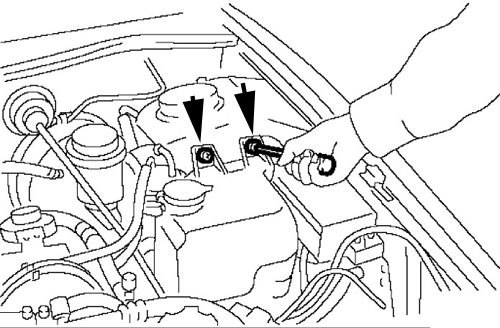

     Washer Bottle Bolts

   • Washer tank mounting bolts
   • Washer tank (set aside)
   • Ignition coil connector
   • Ignition coil
   • PCV hose from rocker cover

     Valve Cover

   • Rocker cover bolts
   • Rocker cover

To Install:

1. Connect or install the following for right side valve cover service.

   Rocker Cover

   • Rocker cover
   • Rocker cover mounting bolts
   • PCV hose to rocker cover
   • Ignition coil
   • Ignition coil connector
   • Air cleaner case
   • Air intake duct

     Engine Harness Connector

     Engine Harness Bracket

     Negative Battery Cable

   • Engine harness connector with bracket to air cleaner upper cover
   • Ground cable from battery
2. Connect or install the following for left side valve cover service

   Valve Cover

   • Rocker cover
   • Rocker cover bolts
   • PCV hose to rocker cover
   • Ignition coil connector
   • Ignition coil

     Washer Bottle Bolts

   • Washer tank mounting bolts
   • Washer tank

     Washer Motor Connector

   • Washer motor connectors
   • Battery and battery carrier

     Negative Battery Cable

   • Battery cable
