Thermostat

Removal & Installation

To Remove:

1. To perform thermostat removal, complete the following steps
   • Lift-up the vehicle
   • Remove the under cover
   • Drain engine coolant

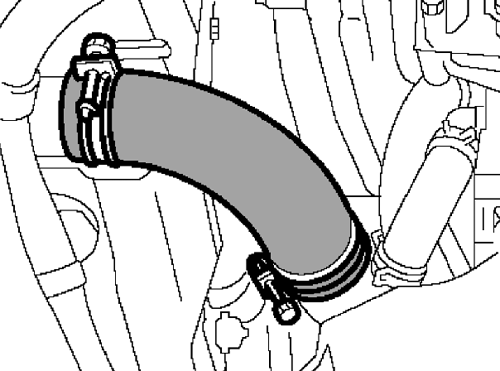

     Radiator Outlet Hose

   • Disconnect the radiator outlet hose

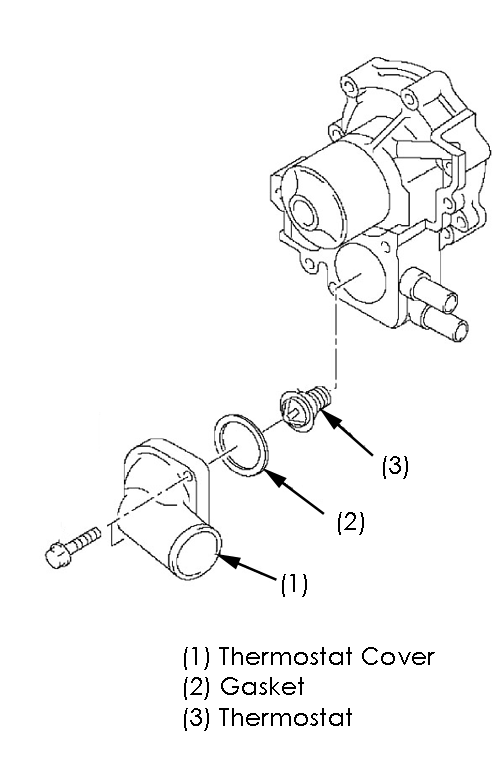

     Thermostat and Housing

   • Remove the thermostat housing and gasket
   • Pull out the thermostat

To Install:

1. To perform thermostat installation, complete the following steps

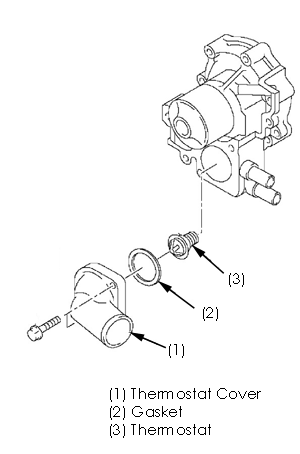

   Thermostat and Housing

   • Install the thermostat in water pump (with the jiggle pin (A) facing to front side)
   • Install the thermostat cover together with a gasket

     NOTE: When reinstalling the thermostat, use a new gasket.

     Radiator Outlet Hose

   • Connect the radiator outlet hose
   • Fill engine coolant
