To Remove:
- Disconnect or remove the following
- Battery ground cable
- Fuel filler cap

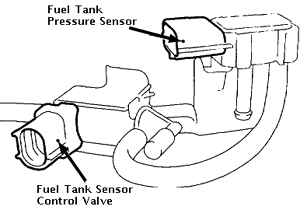

| Fuel Tank Pressure Sensor And Control Valve
|
- Fuel tank pressure sensor and fuel tank sensor control valve connector
- Pressure hose from fuel tank pressure sensor
- Fuel tank pressure sensor and fuel tank sensor control valve with bracket
- Fuel tank sensor control valve from bracket
NOTE: Fuel tank pressure sensor cannot be removed because it is integral with bracket.
To Install:
- Connect or install the following
| Fuel Tank Pressure Sensor And Control Valve
|
- Fuel tank sensor control valve to bracket
- Torque specification: 7.4 N.m (5.4 ft-lb)
- Fuel tank pressure sensor and fuel tank sensor control valve with bracket
- Pressure hose to fuel tank pressure sensor
- Fuel tank pressure sensor and fuel tank sensor control valve connector
- Fuel filler cap
- Battery ground cable
