Manifold Absolute Pressure Sensor

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery

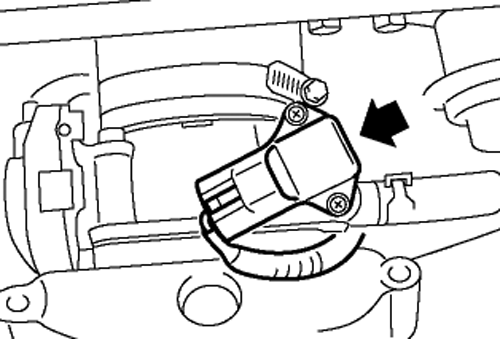

     MAP sensor

   • Manifold absolute pressure sensor connectors
   • Manifold absolute pressure sensor from the throttle body

To Install:

NOTE: Replace the O-rings for the manifold absolute pressure sensor with new ones.

1. Install or connect the following

   MAP sensor

   • Manifold absolute pressure sensor from the throttle body
   • Torque specification: 1.6 N.m (1.2 ft.lb)
   • Manifold absolute pressure sensor connectors
   • Ground cable from battery
