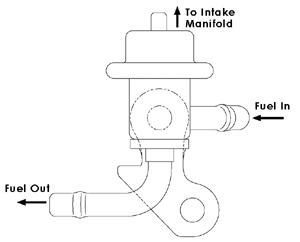

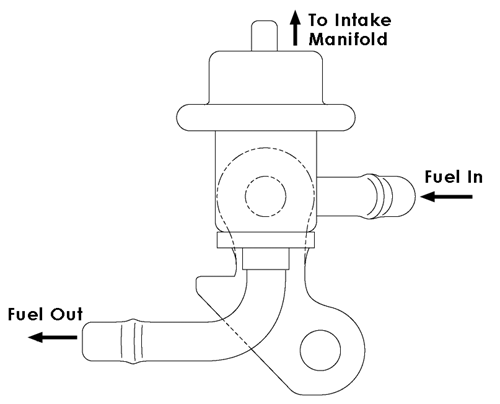

Fuel Pressure Regulator

Removal & Installation

To Remove:

1. Disconnect battery negative cable
2. Release fuel pressure
3. Disconnect or remove the following
   • Fuel lines to regulator
   • Regulator mounting screw
   • Regulator

To Install:

1. Connect or install the following
   • Regulator
   • Regulator mounting screw
   • Fuel lines to regulator
   • Battery negative cable
