Windshield Wiper Blade and Arm

Removal & Installation

Front Wiper Blade

To Remove:

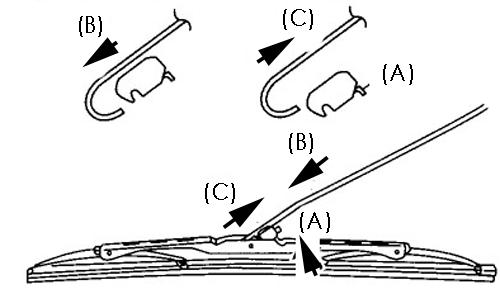

1. While pushing locking clip (A) up, pull out blade from arm to arrow direction

To Install:

1. With new clip and blade, push into arm opposite of arrow
2. Confirm that clip was locked securely

Front Wiper Arm

To Remove:

1. Open hood

2. Remove cap

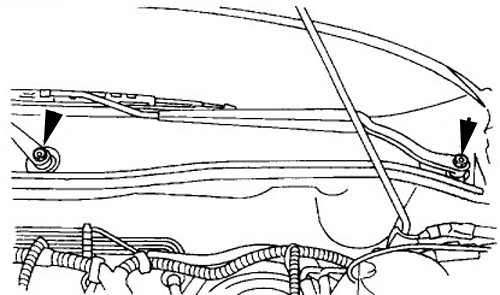

3. Loosen nut to remove arm

To Install:

1. Install arm and tighten nut
2. Install cap
3. Close hood
4. Operate wiper once

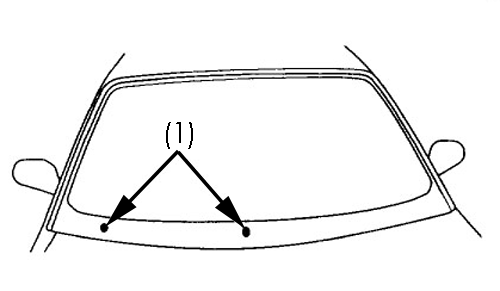

5. Align wiper blade to ceramic print point mark (A) of front window pane

Rear Wiper Arm

To Remove:

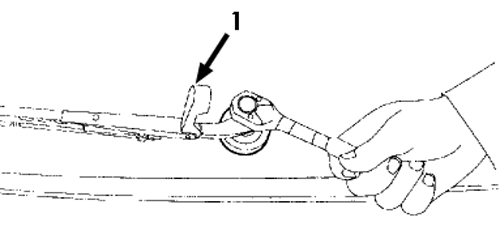

1. Raise wiper arm cover (A)
2. Loosen nut to remove wiper arm

To Install:

1. Install arm and tighten nut
2. Lower wiper arm cover
3. Operate rear wiper once

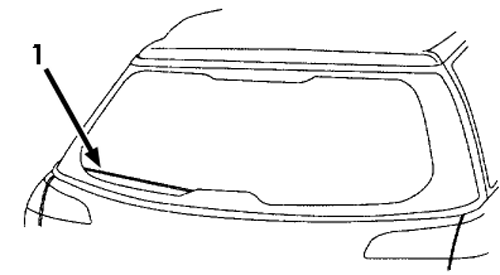

4. Align blade to rear defogger heat wire (A)
