Windshield Wiper Motor

Removal & Installation

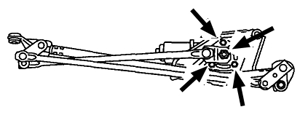

Front

To Remove:

1. Disconnect or remove the following
   • Ground cable from battery
   • Cowl panel

   • Motor electrical connector
   • Bolts and nuts to remove wiper link
   • Bolts and nuts to remove motor

To Install:

1. Install or connect the following
   • Bolts and nuts to remove motor
   • Bolts and nuts to remove wiper link
   • Motor electrical connector
   • Cowl panel
   • Ground cable from battery

Rear

To Remove:

1. Remove or disconnect the following
   • Rear wiper arm

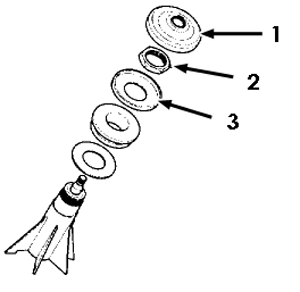

   • Cap (a), nut (b), and spacer (c) from rear wiper shaft
   • Rear gate lower trim
   • Clip of harness clip

   • Connector of wiper motor connector

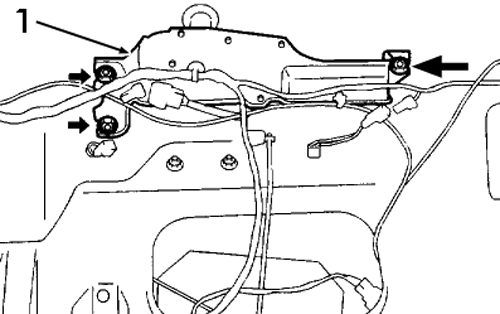

   • Wiper motor bolts
   • Wiper motor assembly (A)

To Install:

1. Install or connect the following
   • Wiper motor assembly (A)
   • Wiper motor bolts
   • Connector of wiper motor connector
   • Clip of harness clip
   • Rear gate lower trim

   • Cap (a), nut (b), and spacer (c) to rear wiper shaft
   • Rear wiper arm
