Extension Housing Seal (in-vehicle)

Removal & Installation

To Remove:

1. Clean the transmission exterior
2. Drain the gear oil completely

   CAUTION
   Directly after the engine has been running, the transmission gear oil is hot. Be careful not to burn yourself. Be careful not to spill the transmission gear oil on exhaust pipe to prevent it from emitting smoke or fire. If transmission gear oil splashes on exhaust pipe, wipe it clean.

3. Tighten the drain plug after draining gear oil.
   • Tightening Torque: 70 Nm (51 Ft. Lbs.)
4. Remove the following
   • Rear exhaust pipe and muffler
   • Heat shield cover (if equipped)
   • Propeller shaft

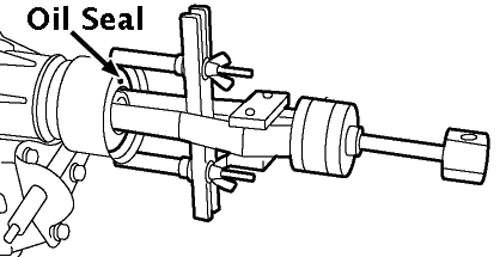

5. Using the ST, remove the oil seal (ST 398527700 PULLER ASSY)

To Install:

1. Using the ST, install the oil seal (ST 498057300 INSTALLER)
2. Install the following
   • Propeller shaft
   • Heat shield cover (if equipped)
   • Rear exhaust pipe and muffler
3. Pour gear oil and check the oil level
