Sway Bar

Removal & Installation

To Remove:

1. Jack-up the rear part of the vehicle and support it with safety stands (rigid racks)

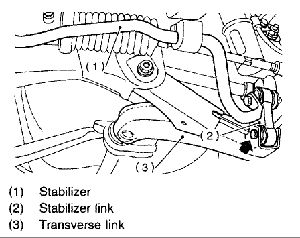

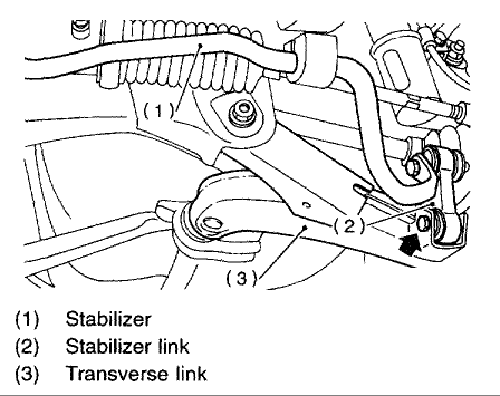

2. Remove the following
   • Stabilizer link to rear arm bolts
   • Stabilizer to sub frame bolts

To Install:

1. Install the following
   • Stabilizer to sub frame bolts
   • Torque specification: 40 Nm (30 ft. lbs.)
   • Stabilizer link to rear arm bolts
   • Torque specification: 44 Nm (32.5 ft. lbs.)

NOTE: Ensure that bushing and stabilizer have the same identification colors when installing.

CAUTION
Discard old self-locking nut and replace with a new one.
