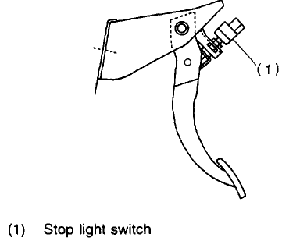

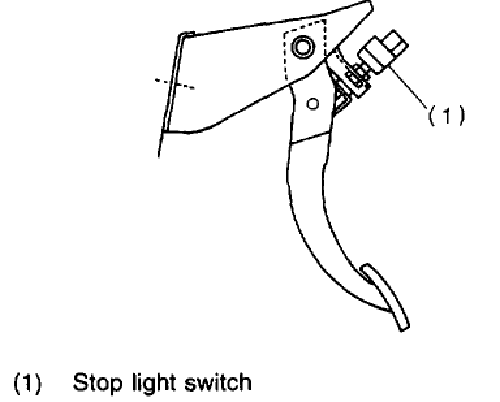

Brake Light Switch

Removal & Installation

To Remove:

1. Disconnect or remove the following
   • Battery ground cable

   • Stop light switch connector
   • Stop light switch mounting nut
   • Stop light switch

To Install:

1. Install or connect the following
   • Stop light switch onto the bracket
   • Stop light switch nut
   • Stop light switch connector
   • Adjust stop light switch position, and then tighten the nut
   • Torque specification: 8 Nm (5.8 ft. lbs.)
