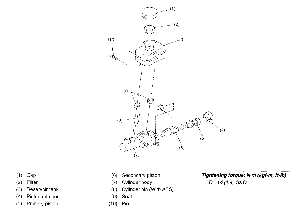

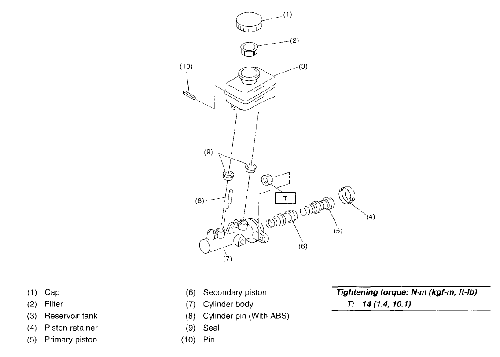

Master Cylinder

Removal & Installation

To Remove:

1. Pull up parking brake lever, and block tires
2. Disconnect or remove the following
   • Battery ground cable

   • Brake fluid level indicator connector
   • Master cylinder brake pipes
   • Master cylinder installing nuts
   • Master cylinder

To Install:

1. Connect or install the following
   • Master cylinder
   • Master cylinder installing nuts
   • Master cylinder brake pipes
   • Brake fluid level indicator connector
   • Battery ground cable
2. Fill and bleed brake fluid

WARNING
Improper brake bleeding could result in accidental injury and/or death.
