DLC Description
Precautions: General safety (00)
NOTE:
For type distinction of OBD system, refer to “Discrimination for OBD System” under OBD System Description:M16A.

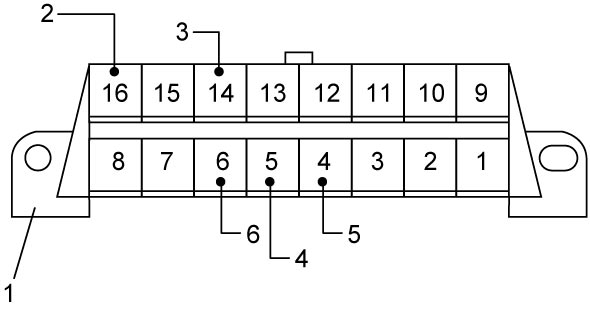

DLC (1) is in compliance with SAE J1962 in the shape of connector and pin assignment.

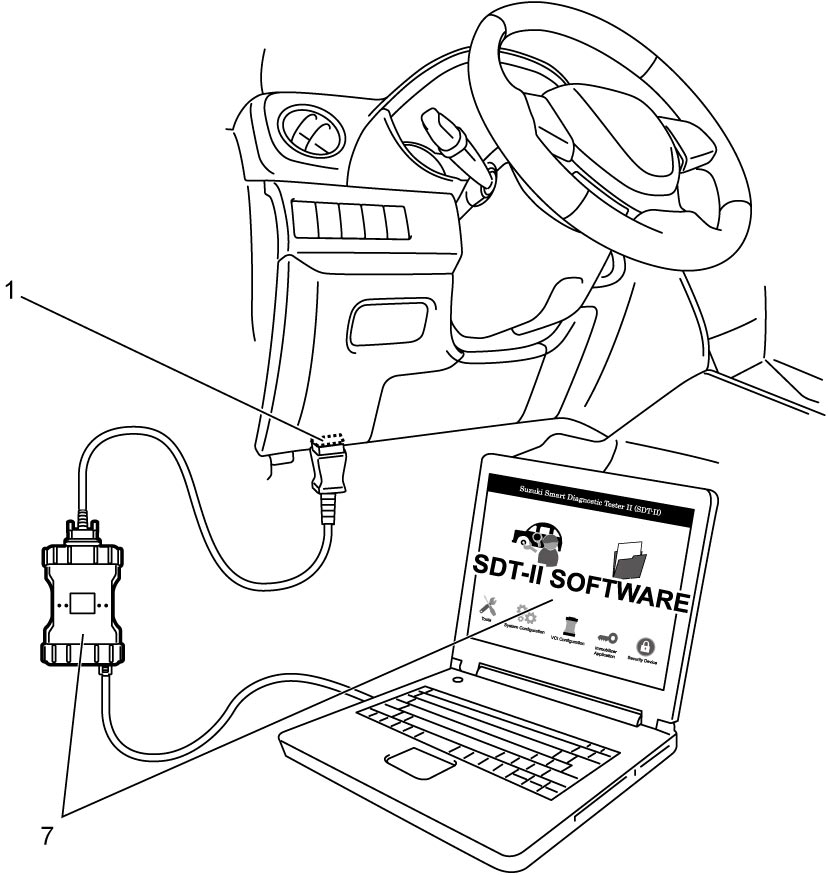

OBD CAN High line (6) and Low line (3) (CAN line of ISO 15765-4) are used for SUZUKI scan tool (Suzuki SDT-II) (7) or CAN communication OBD-II generic scan tool to communicate with ECM of type A, C, D and E OBD system.
| 2. | B + (Continuous battery power) | 5. | Ground (Chassis ground) |
| 4. | ECM ground (Signal ground) |
