Electronic Control System Component Location
Precautions: General safety (00)
NOTE:

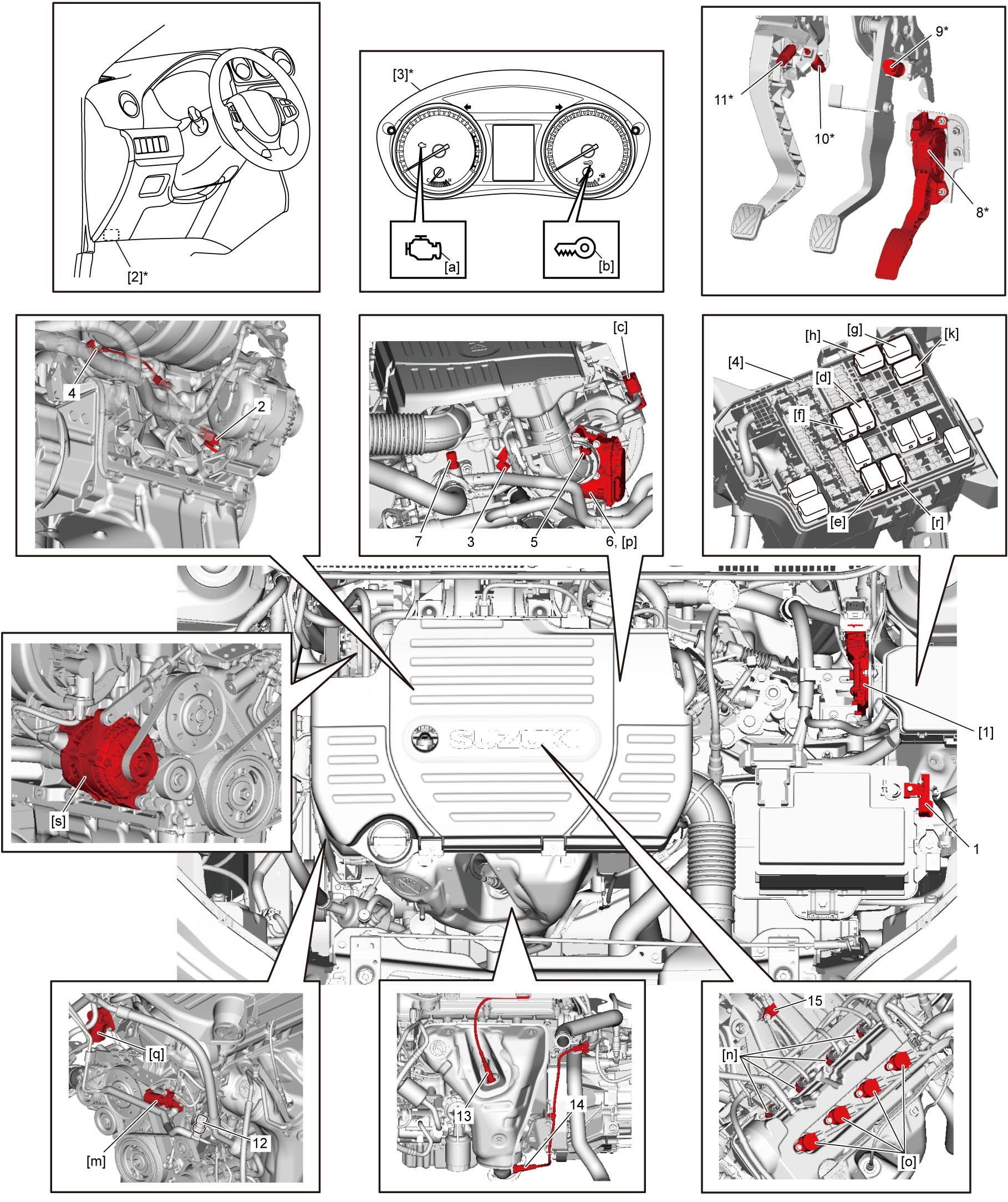

This figure shows component locations for LHD. For RHD, alphabets / numbers with (*) are installed on the opposite side.
| Information sensors | Control devices | Others | |||
|---|---|---|---|---|---|
| 1. | Electric load current sensor (ENG A-STOP model) | [a]: | MIL | [1]: | ECM |
| 2. | CKP sensor | [b]: | Immobilizer indicator light | [2]: | DLC |
| 3. | CMP sensor | [c]: | EVAP canister purge valve | [3]: | Combination meter |
| 4. | Knock sensor | [d]: | Fuel pump relay | [4]: | Individual circuit fuse box No.1 |
| 5. | IAT sensor | [e]: | Starting motor control relay | ||
| 6. | TP sensor | [f]: | A/C compressor relay (A/C model) | ||
| 7. | ECT sensor | [g]: | Radiator cooling fan relay No.3 | ||
| 8. | Accelerator pedal assembly (incorporating APP sensor) | [h]: | Radiator cooling fan relay No.1 | ||
| 9. | Brake light switch / brake switch | [k]: | Radiator cooling fan relay No.2 | ||
| 10. | CPP No.1 switch (M/T model) (if equipped) | [m]: | OCV | ||
| 11. | CPP No.2 switch (M/T model) | [n]: | Fuel injector | ||
| 12. | A/C refrigerant pressure sensor (A/C model) | [o]: | Ignition coil assembly | ||
| 13. | HO2S-1 | [p]: | Electric throttle body assembly | ||
| 14. | HO2S-2 | [q]: | IMT valve actuator | ||
| 15. | MAP sensor | [r]: | Main relay | ||
| [s]: | Generator | ||||
