DTC P0010 / P2088 / P2089
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P0010: “A” Camshaft Position Actuator Circuit / Open OCV drive circuit is open. (3 D/C detection logic) |
•OCV and/or its circuit
•ECM |
|
P2088: “A” Camshaft Position Actuator Control Circuit Low OCV drive circuit is shorted to ground. (3 D/C detection logic) |
|
|
P2089: “A” Camshaft Position Actuator Control Circuit High OCV drive circuit is shorted to power supply. (3 D/C detection logic) |

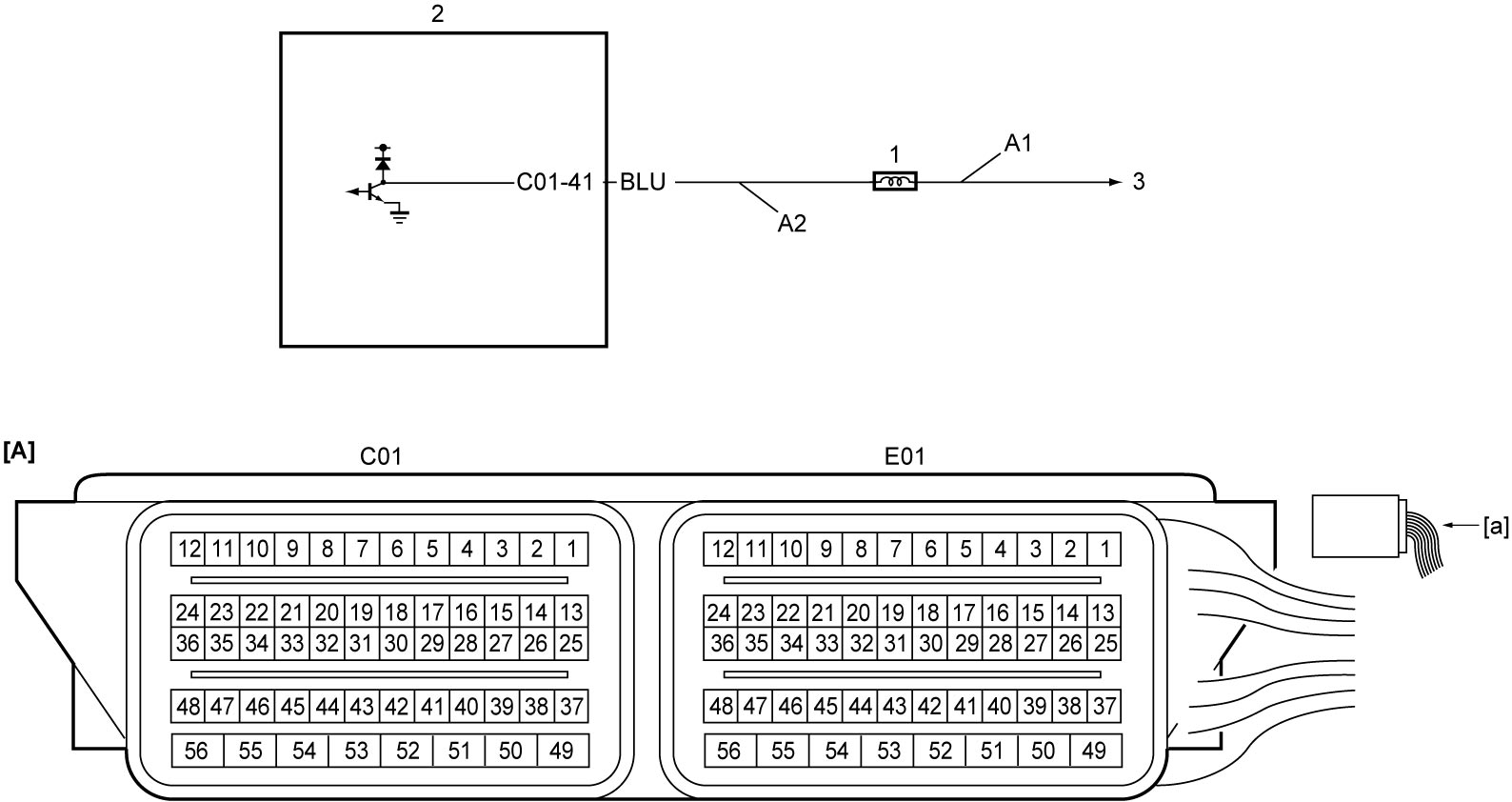

Circuit Diagram
| [A]: | ECM connector (View: [a]) | A2: | OCV drive circuit | 2. | ECM |
| A1: | OCV power supply circuit | 1. | OCV | 3. | To main relay |
DTC Confirmation Procedure
NOTE:
Check that the following condition is met in this “DTC Confirmation Procedure”.
•Battery voltage > 8.5 V
1)Run engine at idle speed for 10 sec.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
OCV power supply circuit check
1)With ignition “OFF”, disconnect connector from OCV.
2)Check for proper terminal connection to OCV connector.
3)If connection is OK, set ignition “ON”.
4)Check that voltage between “A1” and ground is battery voltage.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
OCV drive circuit check
1)With ignition “OFF”, disconnect “C01” and “E01” connectors from ECM.
2)Check for proper terminal connections to “C01” and “E01” connectors.
3)If connections are OK, check the following points.
•Resistance of “A2” circuit: less than 1 Ω
•Resistance between “A2” circuit and ground: infinity •Resistance between “A1” circuit terminal and “A2” circuit terminal at OCV connector: infinity •Voltage of “A2” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 4.
|
Repair or replace defective wire harness.
|
| 4 |
OCV check
1)Check OCV.
Is check result OK?
|
Go to Step 5.
|
Replace OCV.
|
| 5 |
Troubleshooting of other DTC(s) at the same time
Is other DTC(s) detected together?
|
Go to troubleshooting for applicable DTC.
|
Replace ECM and recheck DTC.
|
