DTC P0335 / P0336
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P0335: Crankshaft Position Sensor “A” Circuit CKP sensor signal is not inputted while CMP sensor signal is being inputted. (3 D/C detection logic) |
•CKP sensor and/or its circuit
•Sensor plate •ECM |
|
P0336: Crankshaft Position Sensor “A” Circuit Range / Performance Non-toothed position of sensor plate is out of the specified range. (3 D/C detection logic) |

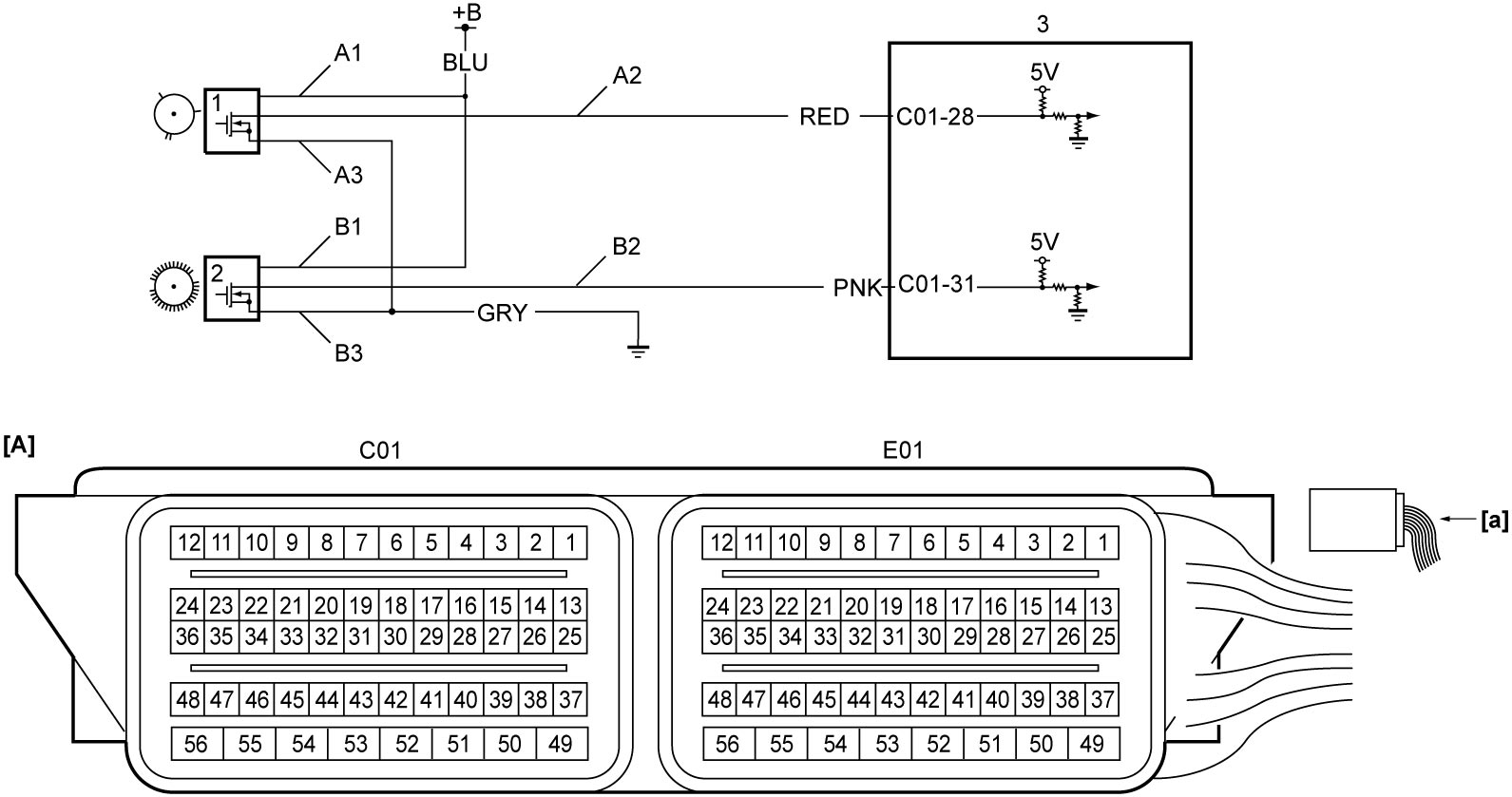

Circuit Diagram
| [A]: | ECM connector (View: [a]) | B1: | CKP sensor power supply circuit | 2. | CKP sensor |
| A1: | CMP sensor power supply circuit | B2: | CKP sensor signal circuit | 3. | ECM |
| A2: | CMP sensor signal circuit | B3: | CKP sensor ground circuit | ||
| A3: | CMP sensor ground circuit | 1. | CMP sensor |
DTC Confirmation Procedure
NOTE:
Check that the following DTC is not detected in this “DTC Confirmation Procedure”.
•CMP sensor (P0340)
1)Run engine at idle speed for 5 min.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
CKP sensor power supply circuit check
1)With ignition “OFF”, disconnect CKP sensor connector.
2)Check for proper terminal connection to CKP sensor connector.
3)If connection is OK, set ignition “ON”.
4)Check that voltage between “B1” and “B3” is battery voltage.
Is check result OK?
|
Go to Step 4.
|
Go to Step 3.
|
| 3 |
CKP sensor ground circuit check
1)Check that voltage between “B1” and ground is battery voltage.
Is check result OK?
|
Repair “B3” circuit.
|
Repair “B1” circuit.
|
| 4 |
CKP sensor signal circuit check
1)With ignition “OFF”, disconnect “C01” and “E01” connectors from ECM.
2)Check for proper terminal connection to “C01” and “E01” connectors.
3)If connections are OK, check the following points.
•Resistance of “B2” circuit: less than 1 Ω
•Resistance between “B2” circuit and ground: infinity •Resistance between “B2” circuit terminal and other terminal at CKP sensor connector: infinity •Voltage of “B2” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 5.
|
Repair or replace defective wire harness.
|
| 5 |
CKP sensor and sensor plate check
1)Check CKP sensor and sensor plate.
•CKP sensor
 •Sensor plate Is check result OK?
|
Replace ECM and recheck DTC.
|
Repair or replace defective parts.
|
